Crash Pad Center Air Vent Duct

Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 2WD ")

(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 4WD ")
Remove the Audio/AVNT keyboard.
(Refer to Body Electrical System - "AUDIO/AVNT KEYBOARD ")

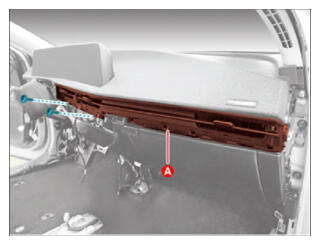

Remove the center air vent duct (A) after removing the screw.

Courtesy of KIA MOTORS AMERICA, INC.

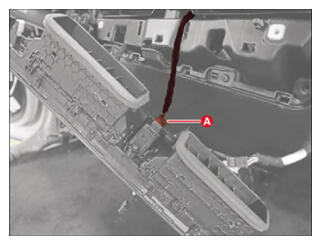

Disconnect the hazard switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
