Crash Pad Air Vent Duct [LH]

  1. Remove the crash pad lower panel.

    (Refer to Crash Pad -  "CRASH PAD PANEL ")

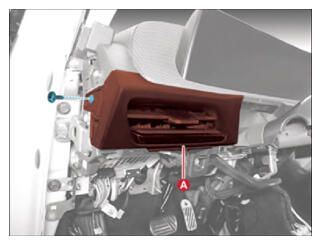

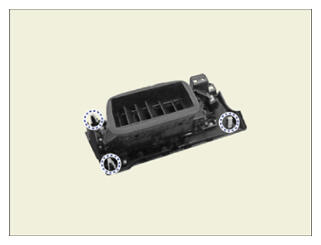

  2. Remove the air vent duct [LH] (A) after removing the screw.
    G15811949Courtesy of KIA MOTORS AMERICA, INC.
    G15811950Courtesy of KIA MOTORS AMERICA, INC.

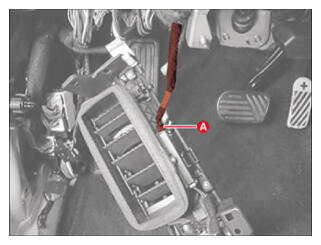

  3. Disconnect the mood lamp connector (A).
G15811951Courtesy of KIA MOTORS AMERICA, INC.
