Vehicle S/W Management

"TCU Neutralization" Vehicle S/W Management
Inspection Condition Inspection Procedure Reference
1. Start "On".
2. Gear Lever position "P".
3. Vehicle speed 0 km/h.
4. Battery normal (10V or higher).
5. NO DTC.		 1. Connect KDS to "Data Link Connector (DLC)".
2. Select the "Vehicle S/W Management" about related DTC with KDS.
3. Select "TCU Neutralization" in S/W Management.
4. After the final work, go to "Verification of Repair" procedure.		 Fig.1 to 5
CAUTION: In case of replacing TCU, Clutch pack, TCU update and TCU learning value is abnormal. Perform following procedures

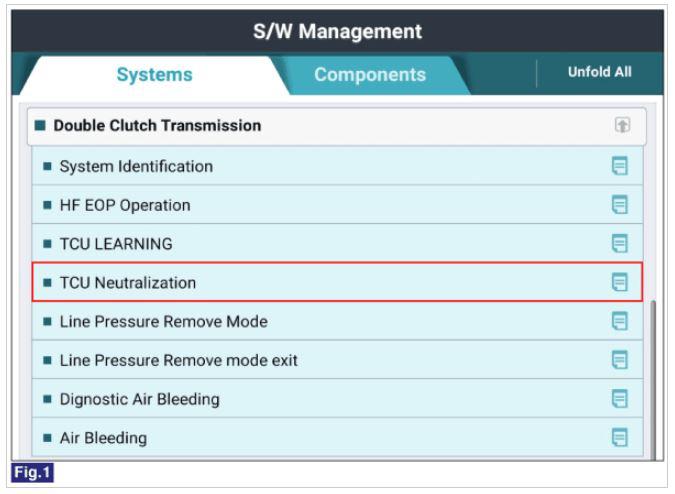

G00629119Courtesy of KIA MOTORS AMERICA, INC.

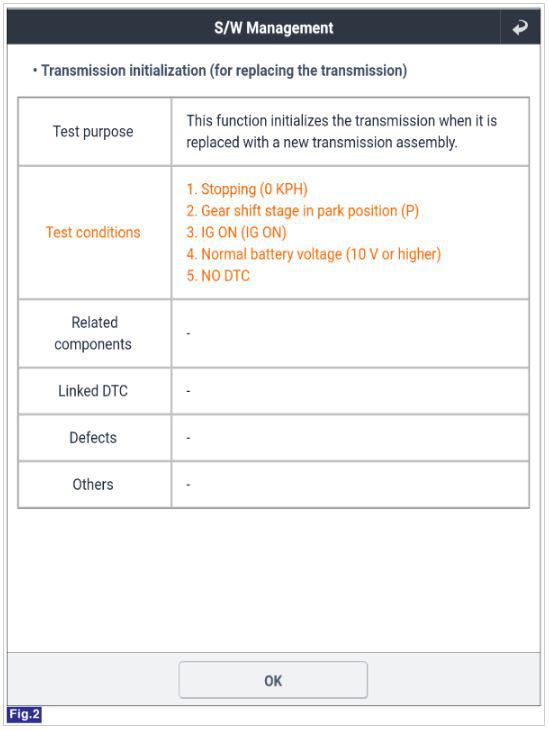

G00629120Courtesy of KIA MOTORS AMERICA, INC.

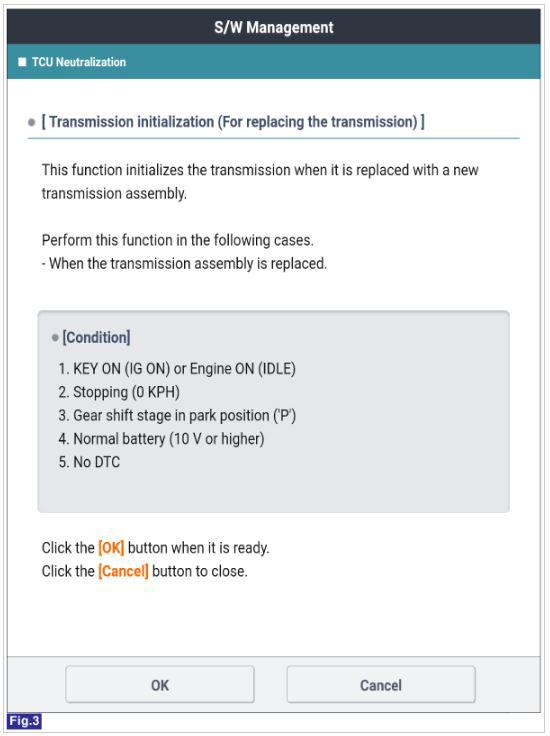

G00629121Courtesy of KIA MOTORS AMERICA, INC.

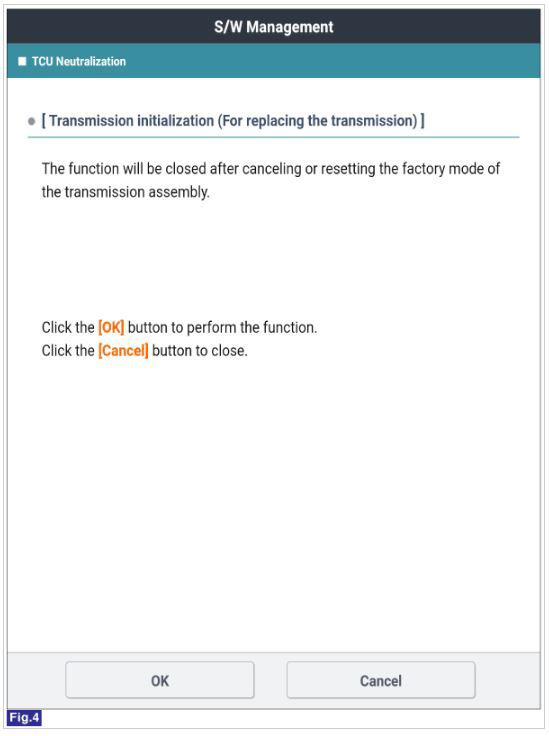

G00629122Courtesy of KIA MOTORS AMERICA, INC.

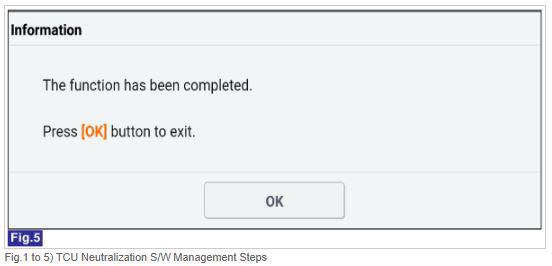

G00629123Courtesy of KIA MOTORS AMERICA, INC.
"Air bleeding" Vehicle S/W Management
Inspection Condition Inspection Procedure Reference
1. Start "On".
2. Gear Lever position "P".
3. Vehicle speed 0 km/h.
4. Battery normal (10V or higher).
5. NO DTC.		 1. Connect KDS to Data Link Connector (DLC).
2. Select the "Vehicle S/W Management" about related DTC with KDS.
3. Select "Air bleeding" in S/W Management.
4. After the final work, go to "Verification of Repair" procedure.		 Fig.1 to 4
CAUTION: In case of replacing TCU, Clutch pack, TCU update and TCU learning value is abnormal. Perform following procedures

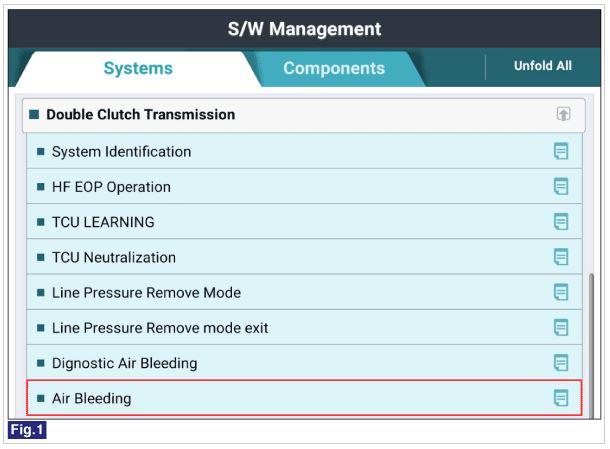

G00629124Courtesy of KIA MOTORS AMERICA, INC.

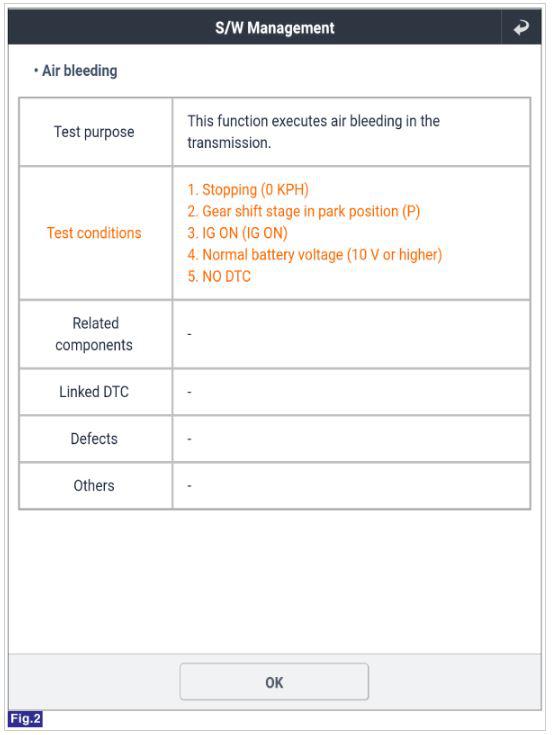

G00629125Courtesy of KIA MOTORS AMERICA, INC.

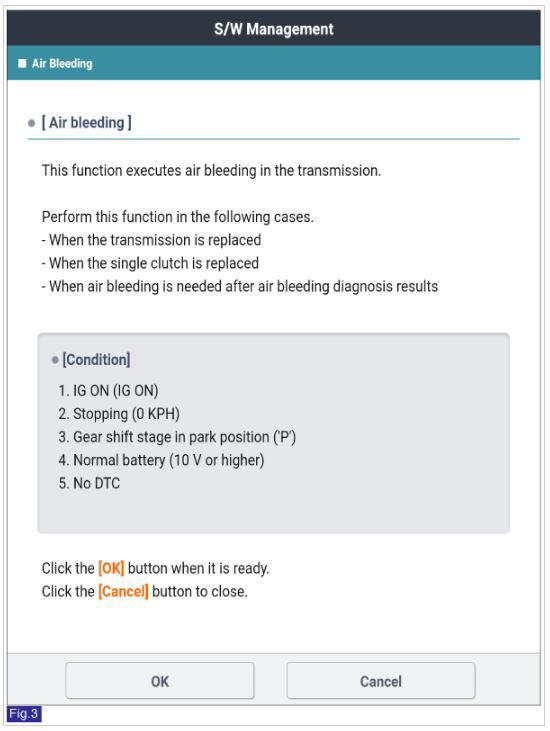

G00629126Courtesy of KIA MOTORS AMERICA, INC.

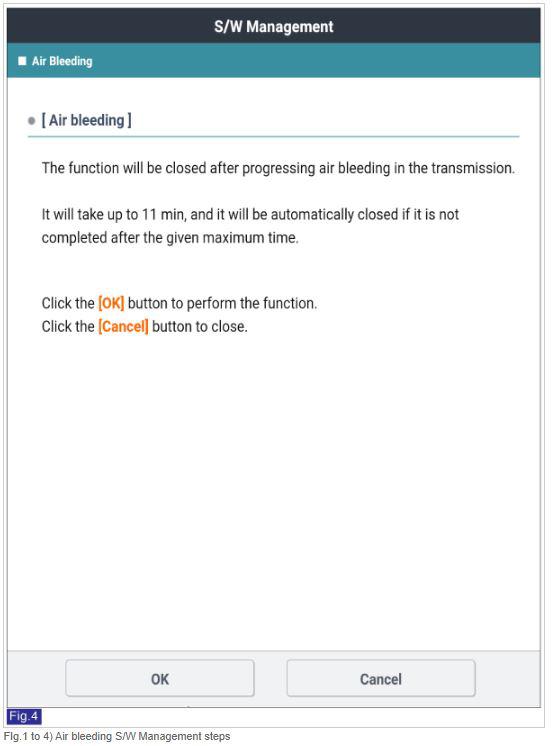

G00629127Courtesy of KIA MOTORS AMERICA, INC.
"TCU LEARNING" Vehicle S/W Management
Inspection Condition Inspection Procedure Reference
1. Start "ON".
2. Gear Lever position "P".
3. Vehicle speed 0 km/h.
4. Battery normal. (10V or higher)
5. NO DTC.		 1. Connect KDS to "Data Link Connector (DLC)".
2. Select the "Vehicle S/W Management" about related DTC with KDS.
3. Perform "TCU LEARNING" of vehicle S/W Management.
4. After final operation, go to "Verification of Repair" procedure.		 Fig.1 to 6
CAUTION: In case of replacing TCU, Clutch pack, TCU update and TCU learning value is abnormal. Perform following procedures

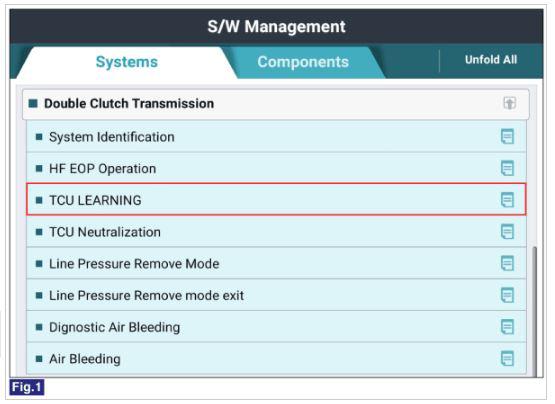

G00629128Courtesy of KIA MOTORS AMERICA, INC.

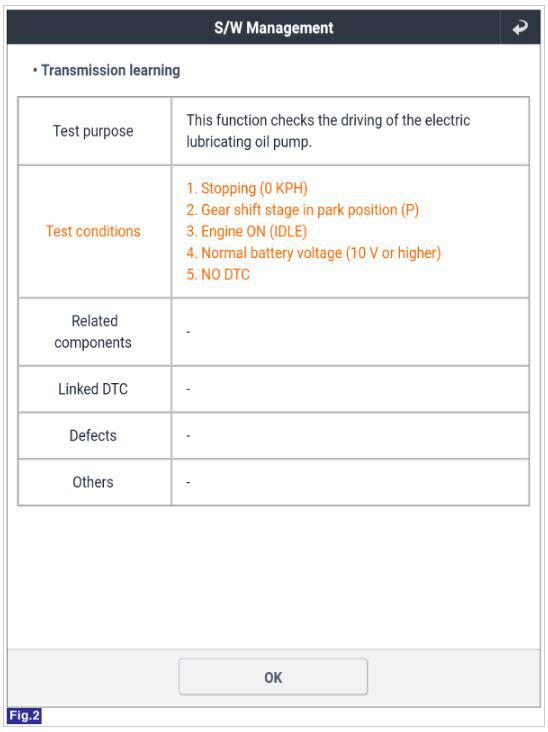

G00629129Courtesy of KIA MOTORS AMERICA, INC.

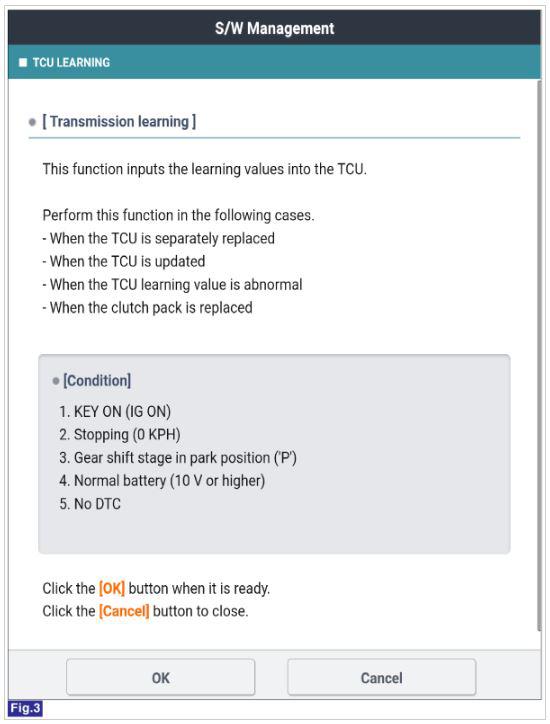

G00629130Courtesy of KIA MOTORS AMERICA, INC.

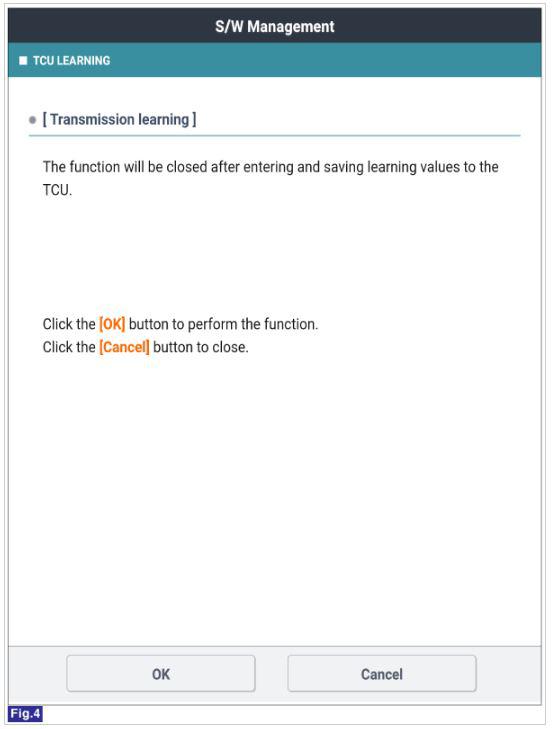

G00629131Courtesy of KIA MOTORS AMERICA, INC.

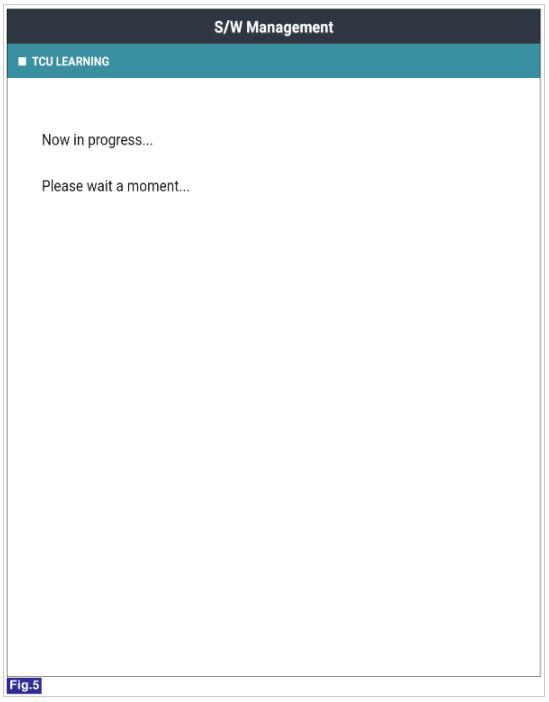

G00629132Courtesy of KIA MOTORS AMERICA, INC.

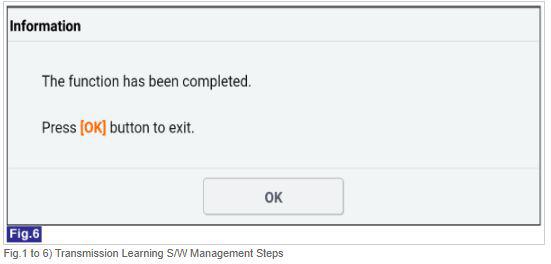

G00629133Courtesy of KIA MOTORS AMERICA, INC.
