Monitor DTC Status

WARNING: This page is about a different variant/trim than selected.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS to Data Link Connector (DLC). Ignition "ON". Select correct vehicle model, year, and engine type with KDS. Select "ALL" system. (Fig.1) Select "Fault Code Searching". (Fig.2)	Fig.1 to 2

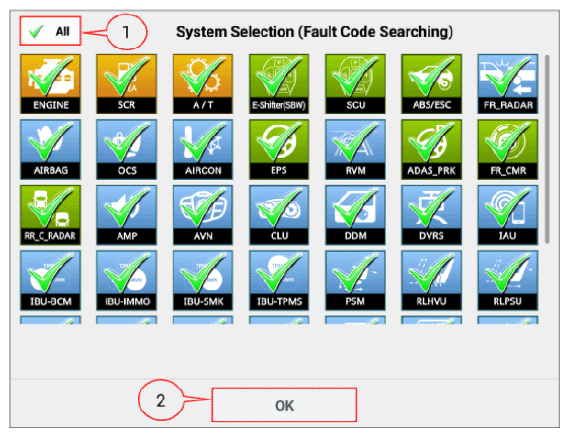

G13685937

Courtesy of KIA MOTORS AMERICA, INC.

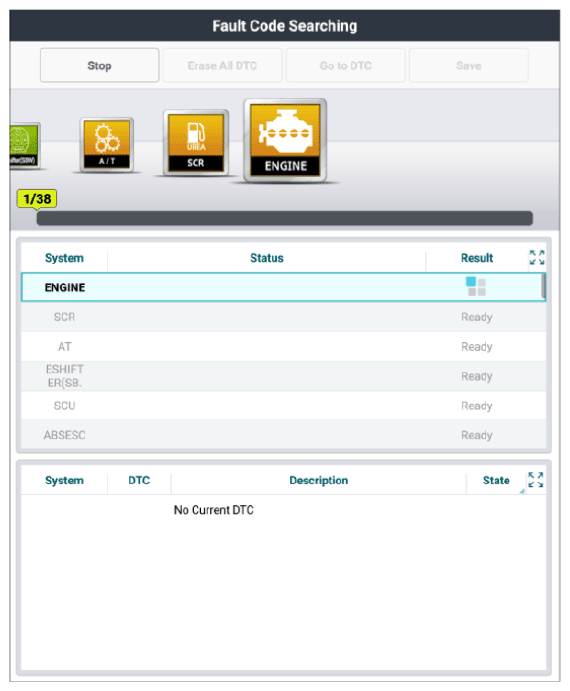

G13685938

Courtesy of KIA MOTORS AMERICA, INC.

Good

Repair any CAN related DTCs first and then carefully re-do this troubleshooting guide steps.
If problem still occurs, go to "WIRING INSPECTION " procedure.

No Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
