DTC P0768-00: Shift Control Solenoid Valve 'D' Electrical (OD And LR): General Description
WARNING: This page is about a different variant/trim than selected.

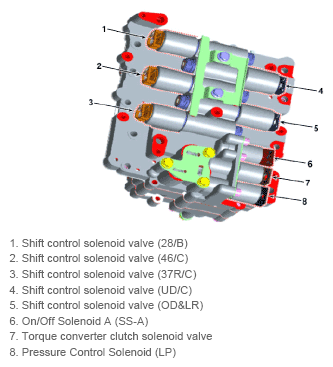

The shift control solenoid valve (OD & LR) is a variable hydraulic pressure control solenoid valve. In according to signals from the PCM, it routes the hydraulic pressure to control the OD clutch and LR brake.
| Solenoid Valve | Remark | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| VFS | ON/OFF | ||||||||
| Direct control VFS | Indirect control VFS | ||||||||
| VFS-27/B | VFS-46/C | VFS-37R/C | VFS-UD/C | VFSOD/C & LR/B | VFS-T/CON | VFS-LINE | SS-A | ||
| P | • | O | • | •: Connected O: Variable Connected | |||||
| R | • | • | O | • | |||||
| N | • | O | • | ||||||
| 1 | O | O | • | ||||||
| 2 | • | • | O | O | |||||
| 3 | • | • | O | O | |||||
| 4 | • | • | O | O | |||||
| 5 | O | O | |||||||
| 6 | • | • | O | O | |||||
| 7 | • | • | O | O | |||||
| 8 | • | • | O | O | |||||
