Vehicle S/W Management
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Ignition "OFF".
- Connect KDS to Data Link Connector (DLC).

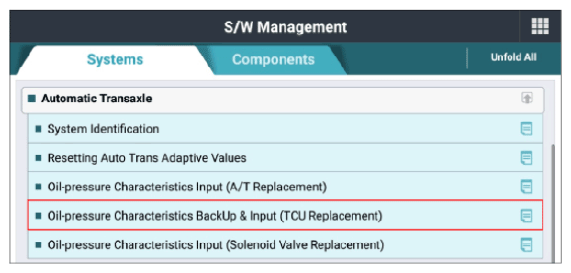

- Select the "Vehicle S/W Management" about related DTC with KDS.
- Perform

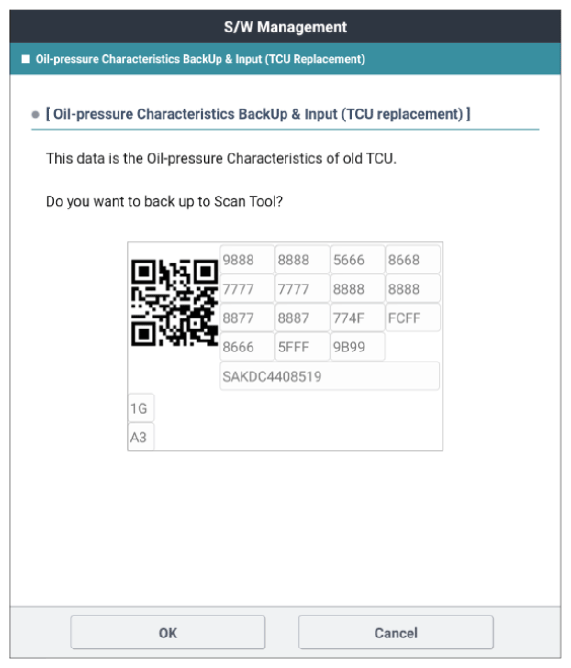

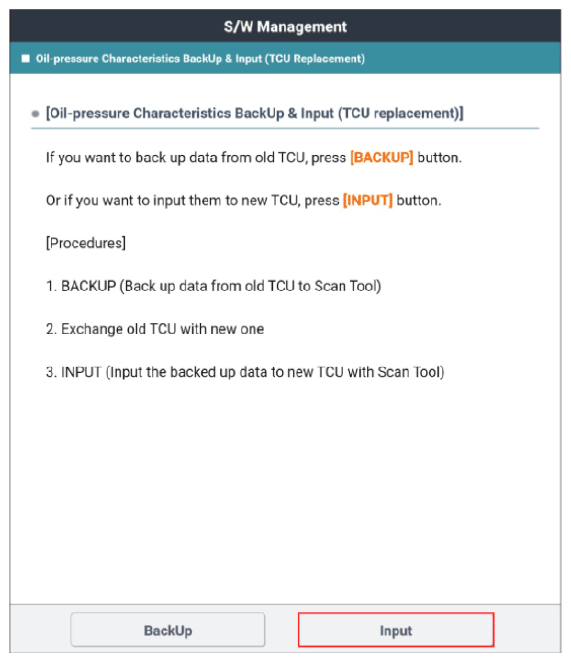

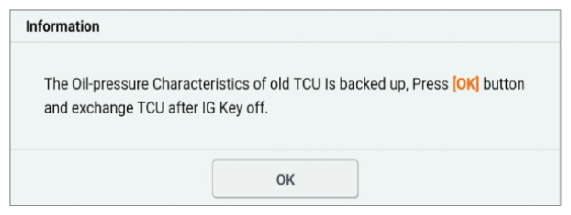

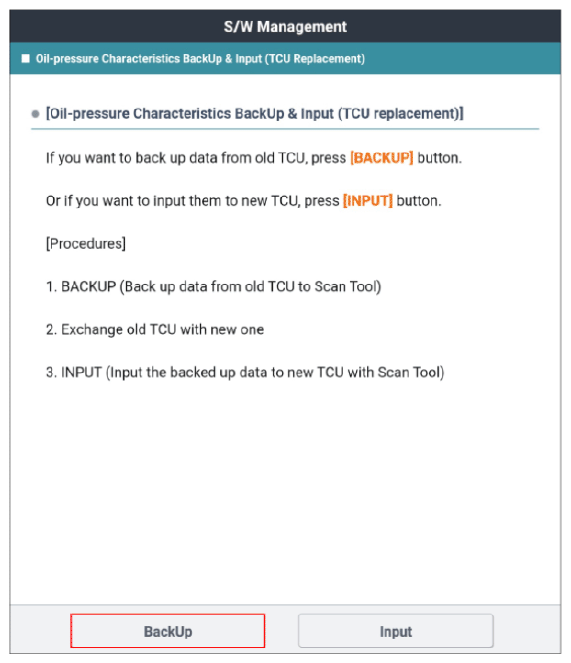

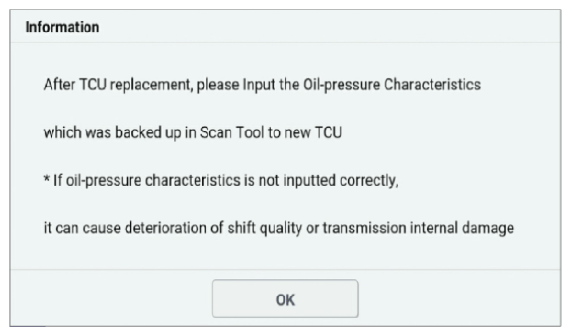

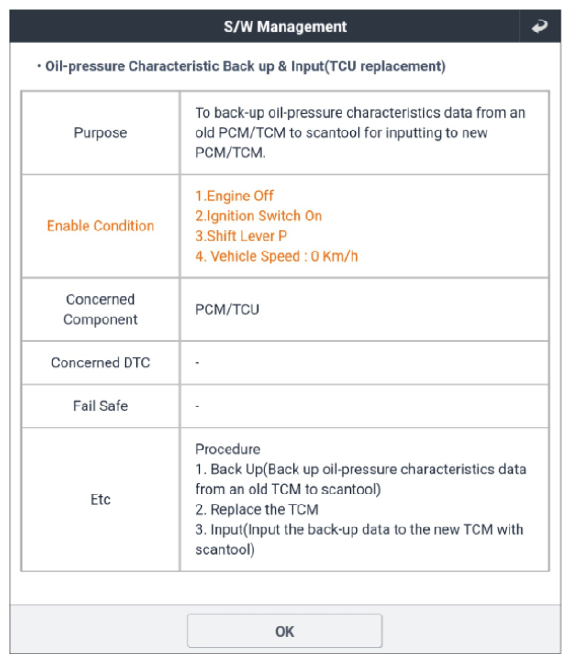

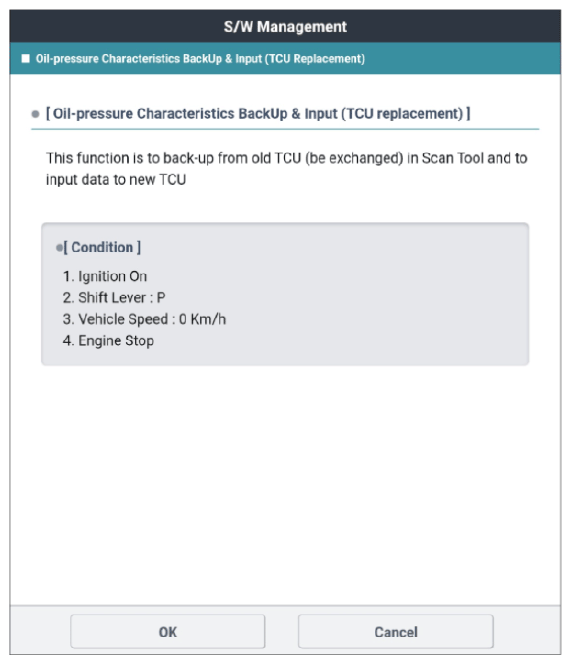

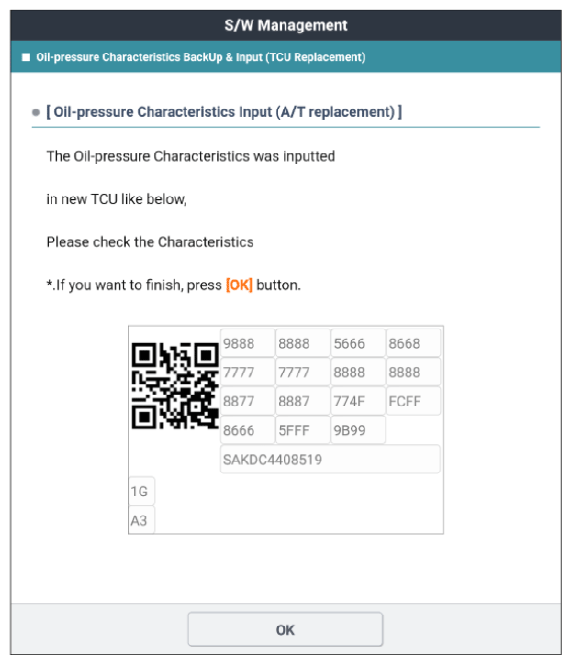

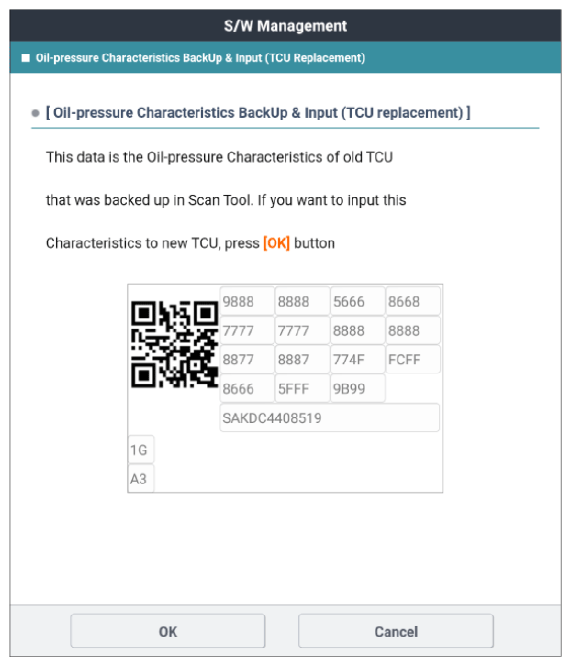

"Oil-pressure Characteristics Backup & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
|
Fig.1 to 10 |
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
