DTC P0741-00: Torque Converter Clutch Circuit Performance Or Stuck Off: General Description
WARNING: This page is about a different variant/trim than selected.
The PCM activates or deactivates the damper clutch (aka torque converter clutch) by using supplied hydraulic pressure. The main purpose of damper clutch is to reduce fuel consumption by lowering the load on hydraulic pressure device inside of T/C.

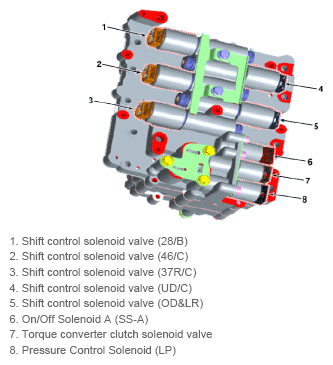

| Solenoid Valve | Remark | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| VFS | ON/OFF | ||||||||
| Direct control VFS | Indirect control VFS | ||||||||
| VFS-27/B | VFS-46/C | VFS-37R/C | VFS-UD/C | VFSOD/C & LR/B | VFS-T/CON | VFS-LINE | SS-A | ||
| P | • | O | • | •: Connected O: Variable Connected | |||||
| R | • | • | O | • | |||||
| N | • | O | • | ||||||
| 1 | O | O | • | ||||||
| 2 | • | • | O | O | |||||
| 3 | • | • | O | O | |||||
| 4 | • | • | O | O | |||||
| 5 | O | O | |||||||
| 6 | • | • | O | O | |||||
| 7 | • | • | O | O | |||||
| 8 | • | • | O | O | |||||
