Component Inspection

WARNING: This page is about a different variant/trim than selected.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

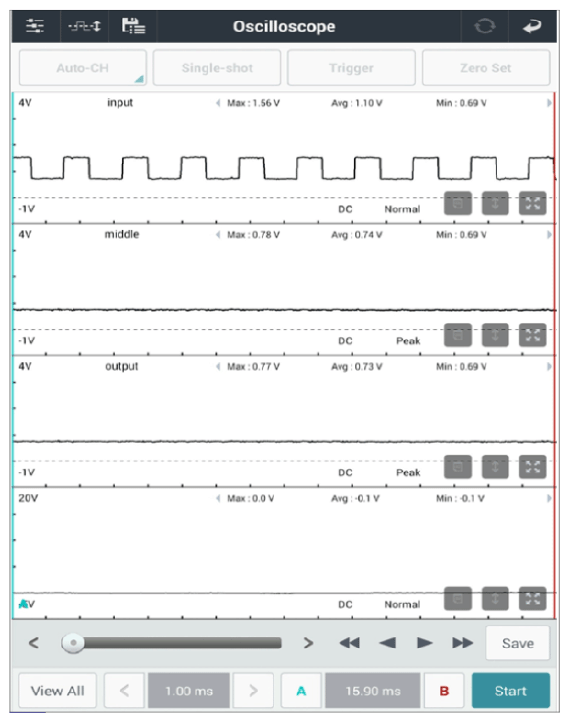

Ignition "ON", engine "ON". Gear lever position at "P".	ATM solenoid valve connector	11 (signal)	ATM solenoid valve connector	6 (signal)	Fig.1
Ignition "ON", engine "ON". Gear lever position at "P".	ATM solenoid valve connector	5 (signal)	-	-	Fig.1

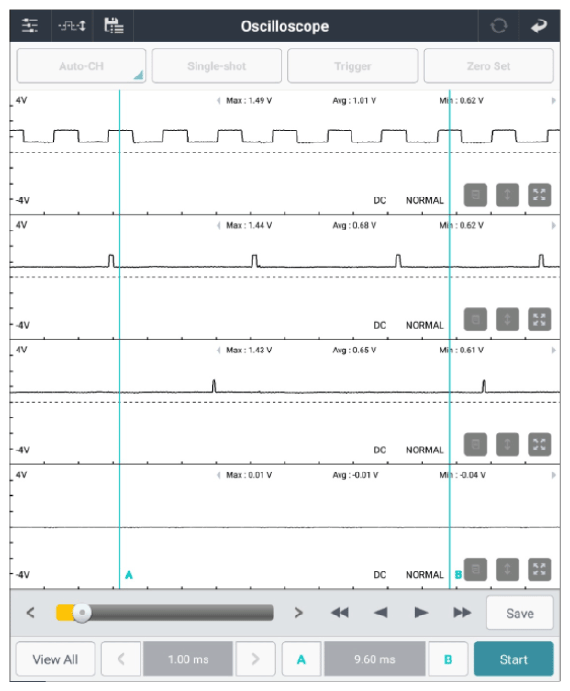

Ignition "ON", engine "ON". Gear lever position at "D".	ATM solenoid valve connector	11 (signal)	ATM solenoid valve connector	6 (signal)	Fig.2
Ignition "ON", engine "ON". Gear lever position at "D".	ATM solenoid valve connector	5 (signal)	-	-	Fig.2

G13685651

Courtesy of KIA MOTORS AMERICA, INC.

G13685652

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace PCM and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace output speed sensor and then go to "VERIFICATION OF REPAIR " procedure.
