Component Inspection

WARNING: This page is about a different variant/trim than selected.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Engine "ON". Gear lever position at "P".	Transmission range switch connector	5 (power)	Transmission range switch connector	7 (S1)	Fig.1
Engine "ON". Gear lever position at "P".	Transmission range switch connector	8 (S2)	Transmission range switch connector	6 (ground)	Fig.1
Engine "ON". Gear lever position at "R".	Transmission range switch connector	5 (power)	Transmission range switch connector	7 (S1)	Fig.2
Engine "ON". Gear lever position at "R".	Transmission range switch connector	8 (S2)	Transmission range switch connector	6 (ground)	Fig.2
Engine "ON". Gear lever position at "N".	Transmission range switch connector	5 (power)	Transmission range switch connector	7 (S1)	Fig.3
Engine "ON". Gear lever position at "N".	Transmission range switch connector	8 (S2)	Transmission range switch connector	6 (ground)	Fig.3
Engine "ON". Gear lever position at "D".	Transmission range switch connector	5 (power)	Transmission range switch connector	7 (S1)	Fig.4
Engine "ON". Gear lever position at "D".	Transmission range switch connector	8 (S2)	Transmission range switch connector	6 (ground)	Fig.4

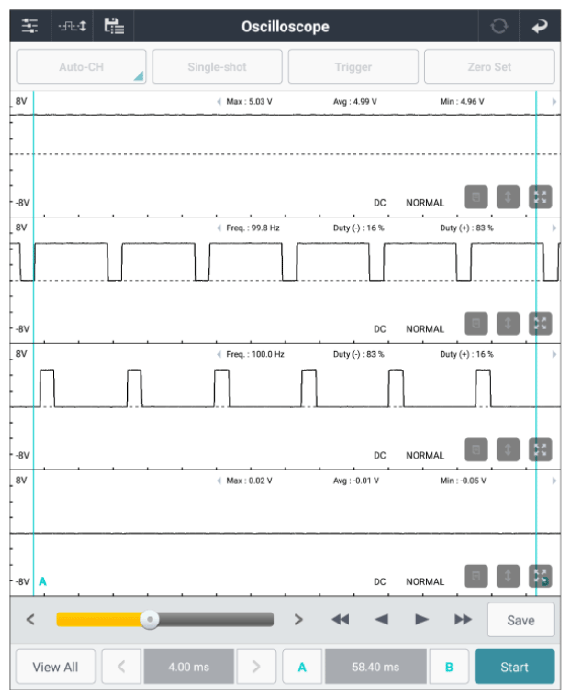

G13685575

Courtesy of KIA MOTORS AMERICA, INC.

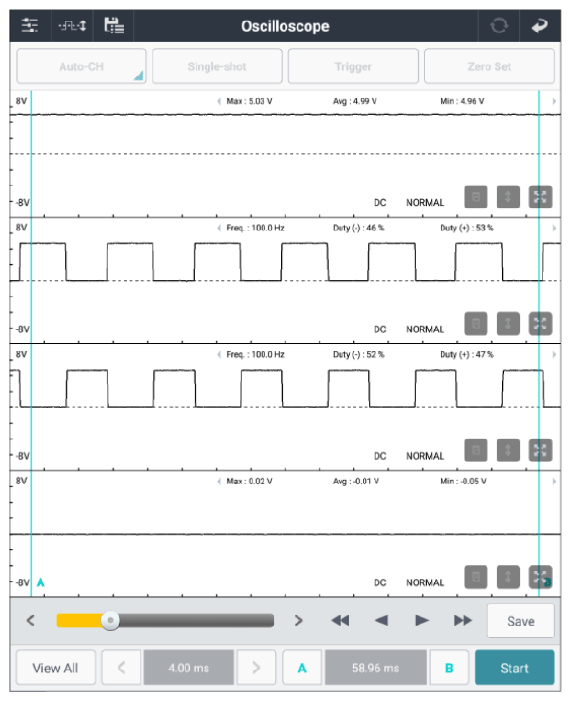

G13685576

Courtesy of KIA MOTORS AMERICA, INC.

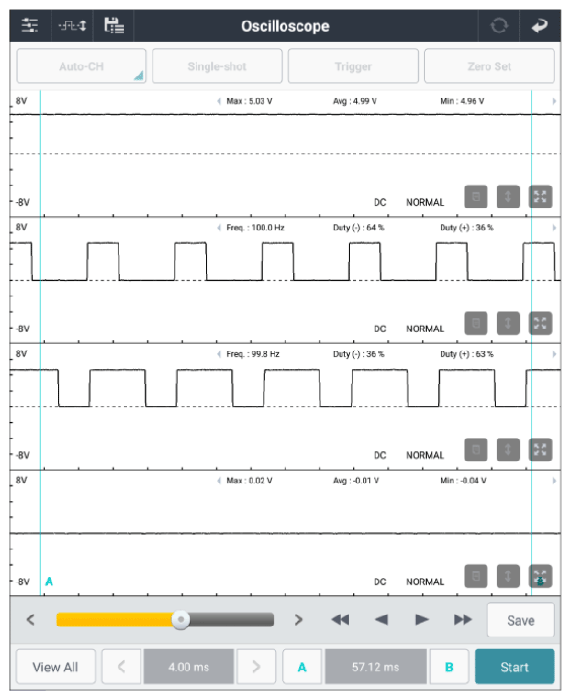

G13685577

Courtesy of KIA MOTORS AMERICA, INC.

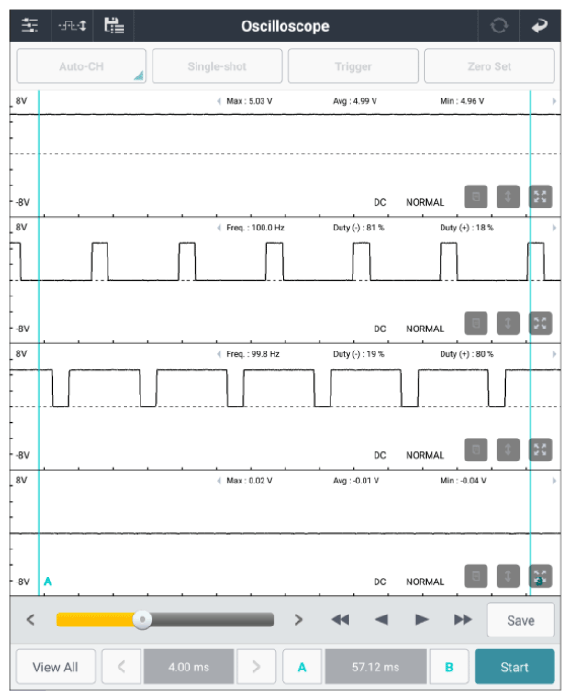

G13685578

Courtesy of KIA MOTORS AMERICA, INC.

Good

Carefully re-do this troubleshooting guide steps.
Check the alignment of shift cable. If problem occurs, align the cable and then go to "VERIFICATION OF REPAIR " procedure.
If problem still occurs, replace PCM and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace transaxle range switch/position sensor and then go to "VERIFICATION OF REPAIR " procedure.
