Removal and Installation
WARNING: This page is about a different variant/trim than selected.

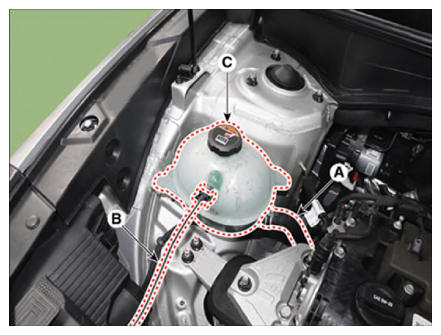

- Remove the reservoir tank.
- Disconnect the reservoir tank water hose (A).
- Disconnect the degaussing hose (B).
- Remove the reservoir tank (C).
Tightening torque:
7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb-ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
