Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative (-) terminal.
Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")

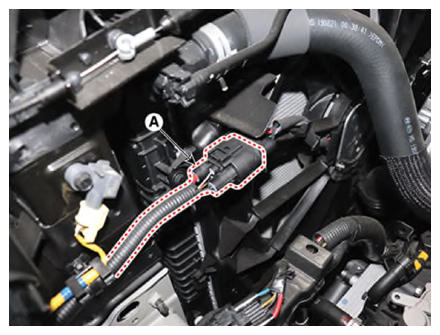

Disconnect the cooling fan connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

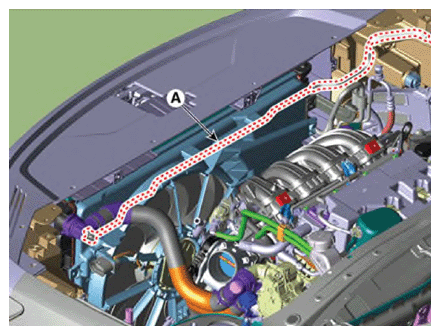

Disconnect the degaussing hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

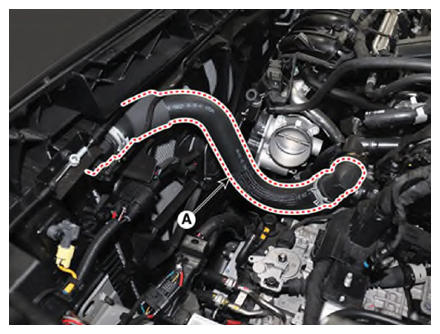

Disconnect the radiator upper quick connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

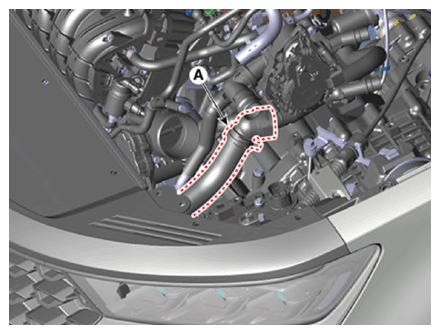

Disconnect the radiator lower quick connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper assembly.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")
Remove the front bumper beam assembly.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER BEAM ASSEMBLY ")

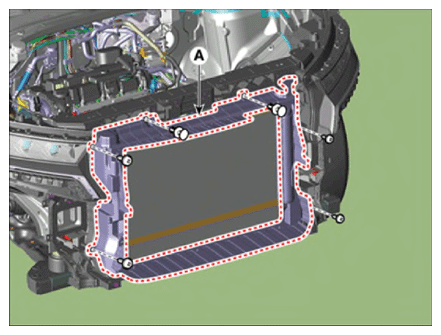

Remove the air guide (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator upper mounting bracket (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

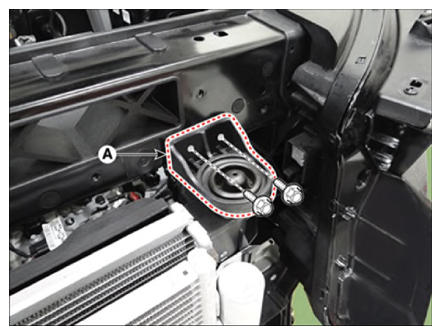

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

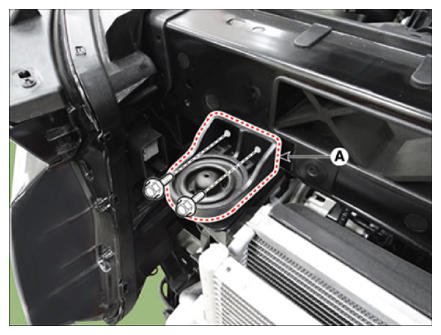

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

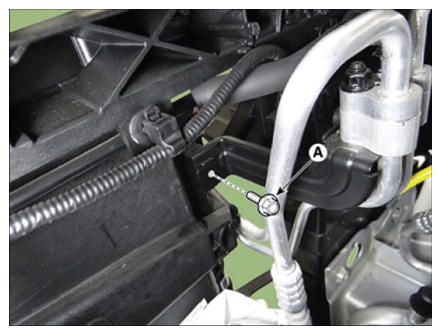

Remove the bracket bolt (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Separate the condenser from the radiator.
(Refer to Heating, Ventilation And Air Conditioning - "CONDENSER ")

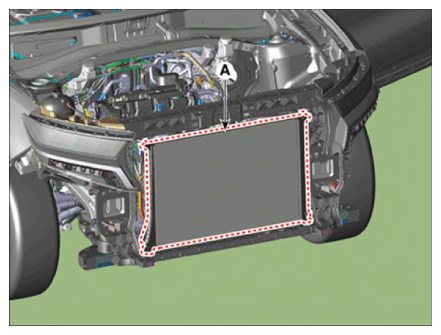

Remove the radiator (A) from the vehicle.

Courtesy of KIA MOTORS AMERICA, INC.

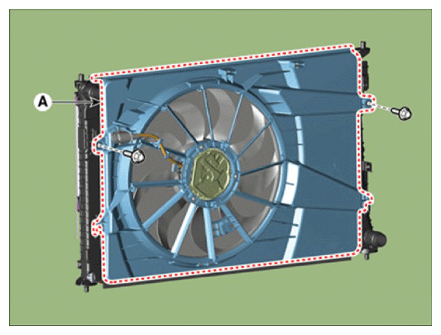

Remove the cooling fan (A) from the radiator.
Tightening torque:

4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft, 43.4 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Fill with engine coolant.
(Refer to Cooling System - "COOLANT ")

NOTE: The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
Start engine and check for leaks.
Recheck engine coolant level.
