Reservoir Cap Testing
WARNING: This page is about a different variant/trim than selected.

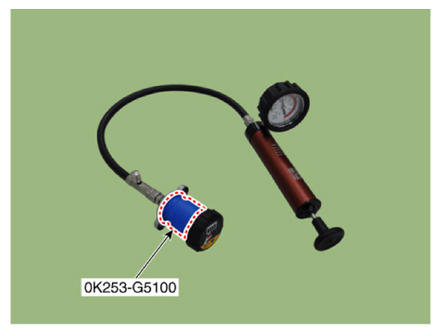

- Install the pressure cap and pressure tester on a SST (0K253-G5100).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Apply a pressure of 125.53 - 154.95 kPa (1.28 - 1.58 kg/cm2
, 18.21 - 22.47 psi).
- Check for a drop in pressure.
- If the pressure drops, replace the cap.
