Water inlet pipe

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE COVER ")

  3. Remove the air intake hose.

    (Refer to Intake And Exhaust System - "AIR CLEANER ")

  4. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  5. Remove the engine room under cover.

    (Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  6. Drain engine coolant.

    (Refer to Cooling System - "COOLANT ")

  7. Remove the integrated thermal management module (ITM).

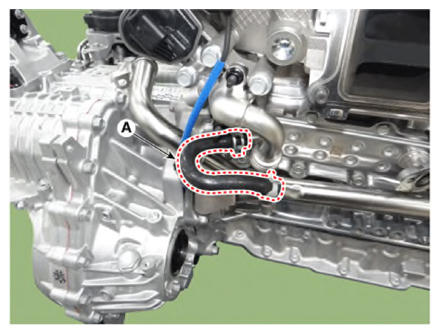

  8. Disconnect the water return hose (A).
    G13660561Courtesy of KIA MOTORS AMERICA, INC.

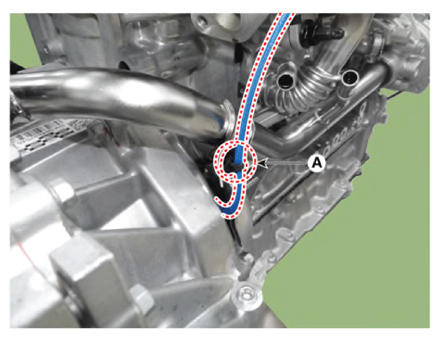

  9. Remove the crankshaft position sensor (CKPS) wiring clip (A).
    G13660562Courtesy of KIA MOTORS AMERICA, INC.

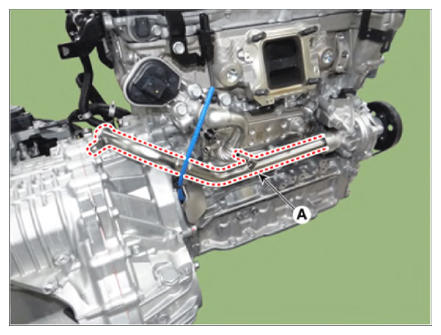

  10. Remove the water inlet pipe (A).
    G13660563Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal.
    NOTE:
    • Always use the new water inlet pipe O-ring.
    • When installing the water inlet pipe, apply anti-freeze or soapy water to O-ring.
  12. Fill with engine coolant.

    (Refer to Cooling System - "COOLANT ")

    NOTE: The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
  13. Start engine and check for leaks.
  14. Recheck engine coolant level.
