Cooling Fan Assembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative (-) terminal.
Remove the radiator.
(Refer to Cooling System - "RADIATOR ")

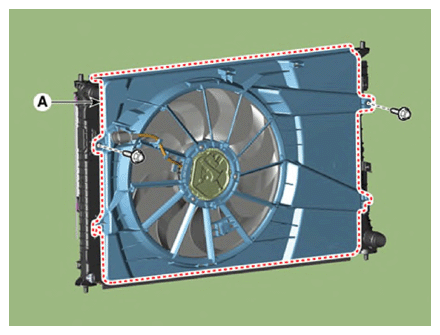

Remove the cooling fan (A) from the radiator.
Tightening torque:

4.9 - 7.8 N.m (0.5 - 0.8 kgf.m, 3.6 - 5.8 lb.ft, 43.4 - 69.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
