Front Muffler

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative (-) terminal.
Remove the rear oxygen sensor.
(Refer to Engine Control/Fuel System - "HEATED OXYGEN SENSOR (HO2S) ")

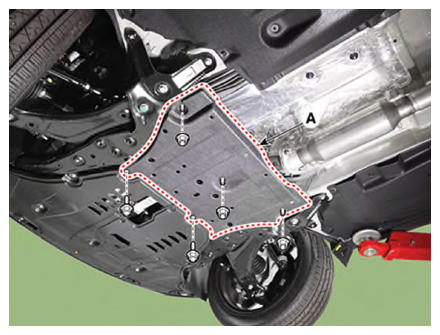

Remove the heat protector (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

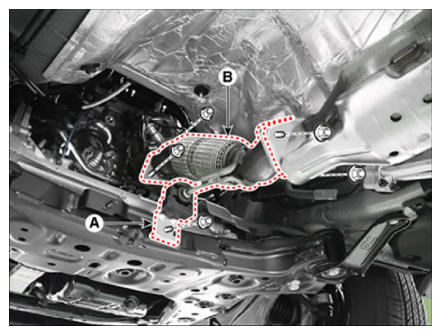

Remove the front muffler.
1. Remove the front muffler hanger (A).
  Tightening torque:

  30.4 - 46.1 N.m (3.1 - 4.7 kgf.m, 22.4 - 34.0 lb.ft)
2. Remove the front muffler (B).
  Tightening torque:

  39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE: When installing, replace with new gaskets.
