Catalytic Converter & Center Muffler Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the catalytic converter & center muffler assembly.

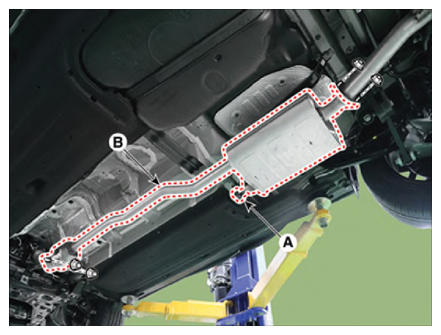

    1. Remove the hanger (A).
    2. Remove the catalytic converter & center muffler assembly (B).

      Tightening torque:

      39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

    G13660794Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.
    NOTE: When installing, replace with new gaskets.
