EGR cooler pipe C
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative (-) terminal.
- Remove the engine cover.
(Refer to Engine And Transaxle Assembly - "ENGINE COVER ")
- Remove the air cleaner assembly.
(Refer to Intake And Exhaust System - "AIR CLEANER ")
- Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain engine coolant by loosening the drain plug.
(Refer to Cooling System - "COOLANT ")
- Remove the integrated thermal management module (ITM).
(Refer to Cooling System - "INTEGRATED THERMAL MANAGEMENT MODULE (ITM) ")

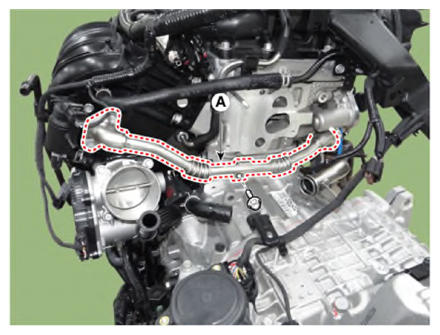

- Remove the EGR cooler pipe C (A).

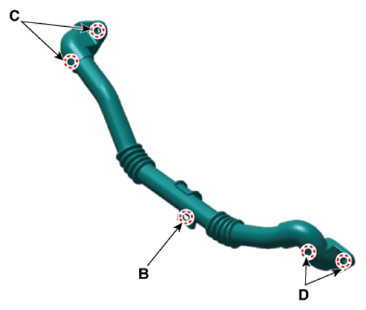

Tightening torque:
Bolt B: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)
Bolt C: 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
Nut D: 18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
- Install in the reverse order of removal.
- Fill engine coolant.
(Refer to Cooling System - "COOLANT ")
NOTE: The coolant must be injected according to the integrated thermal management module (ITM) coolant filling method.
