Component Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

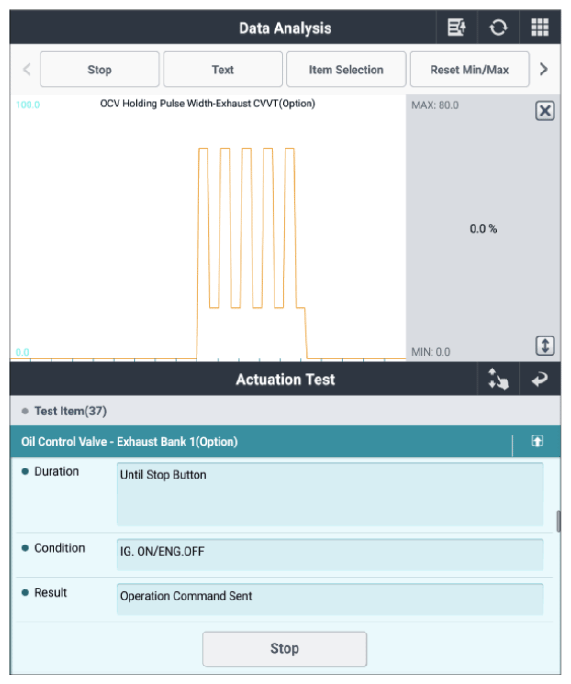

Fig.1 |
Good
- Go to "Oscilloscope Timing Inspection" procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the OCV-Ex (Bank 1) and go to "VERIFICATION OF REPAIR " procedure.

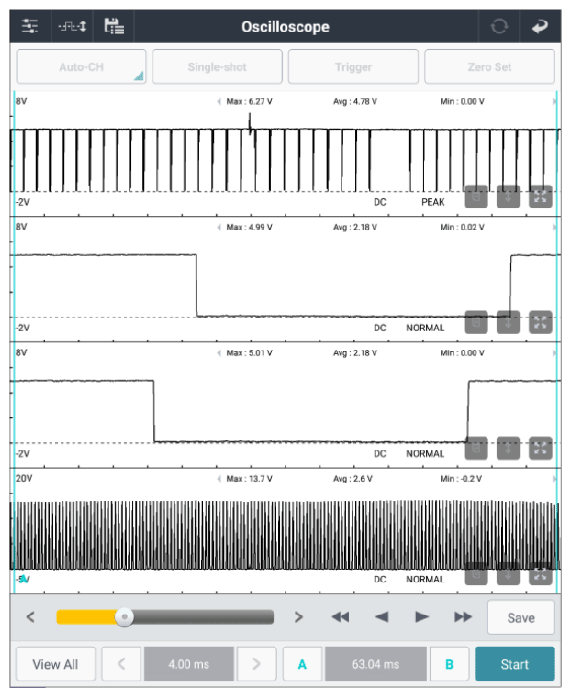

| Oscilloscope Timing Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
| Connector | Terminal | Connector | Terminal | ||
|
CKPS connector | 1 (signal) | CMPS - In connector | 1 (signal) | Fig.1 |
| CMPS - Ex connector | 1 (signal) | E-CVVT connector | 2 (motor +) | ||
Good
- Go to "SYSTEM INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, go to "VERIFICATION OF REPAIR " procedure.
