Component Inspection

WARNING: This page is about a different variant/trim than selected.

Inspection Condition	Inspection Procedure	Reference

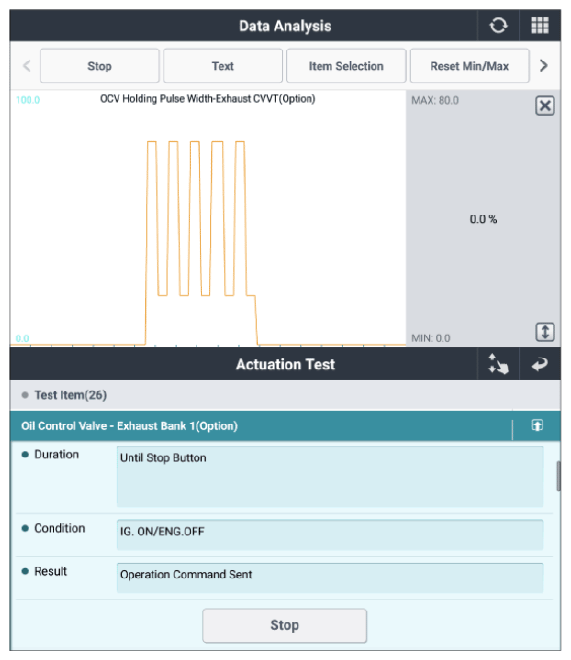

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1

G13679736

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Resistance Inspection" procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the OCV-Ex (Bank 1) and go to "VERIFICATION OF REPAIR " procedure.

Resistance Inspection
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	OCV (component side)	1 (power)	OCV (component side)	2 (control)	Approx. 6.0 to 7.0Ω at 20°C (68°F)

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the CVVT assembly and go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the OCV-Ex (Bank 1) and go to "VERIFICATION OF REPAIR " procedure.
