Vehicle S/W Management

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4

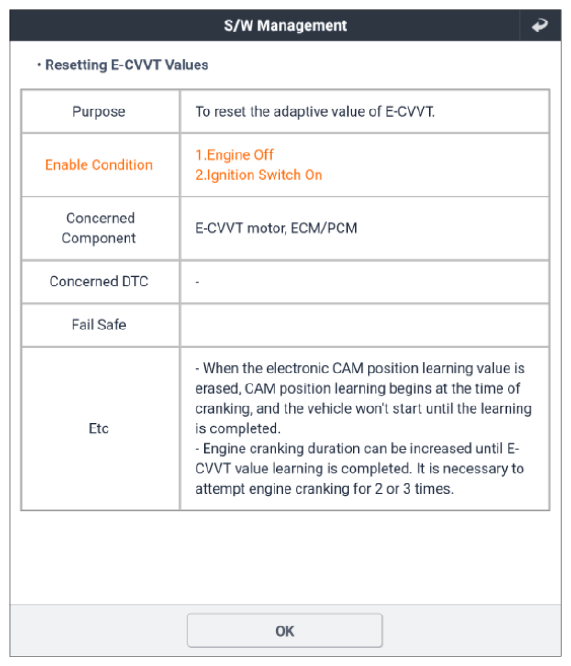

G13679692Courtesy of KIA MOTORS AMERICA, INC.

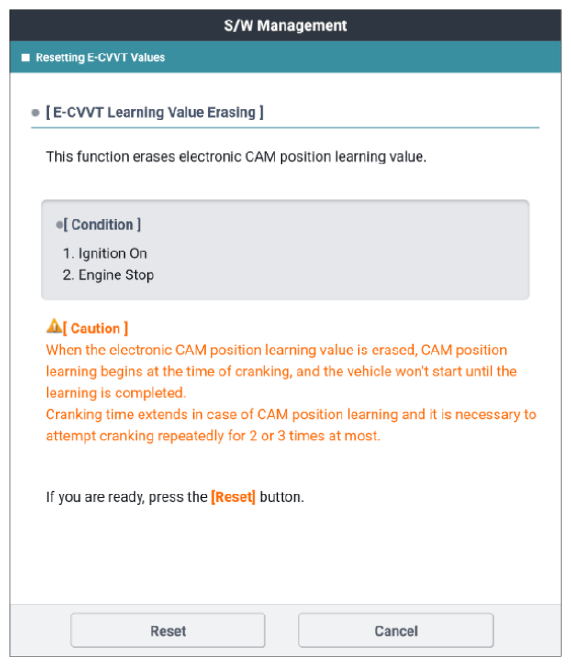

G13679693Courtesy of KIA MOTORS AMERICA, INC.

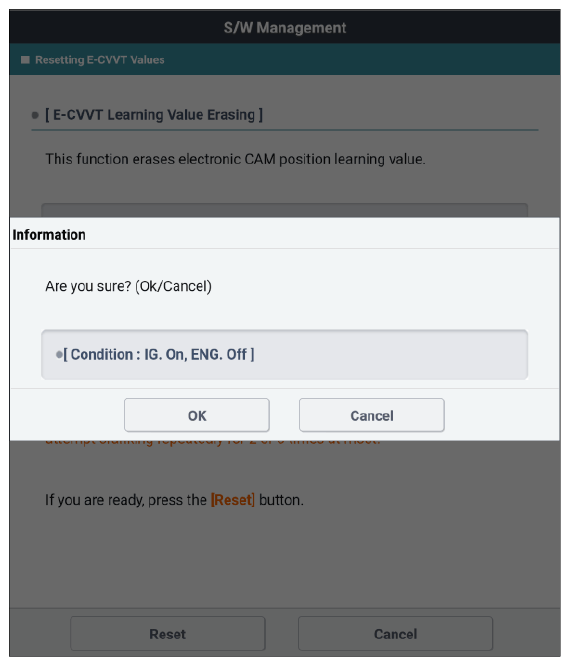

G13679694Courtesy of KIA MOTORS AMERICA, INC.

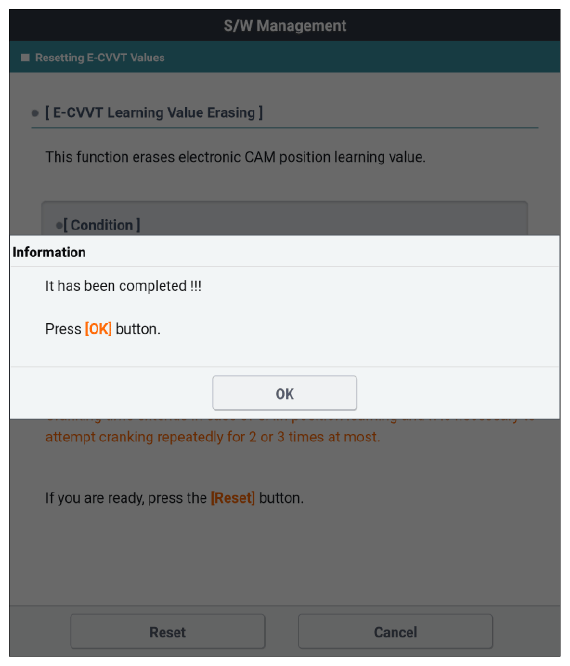

G13679695Courtesy of KIA MOTORS AMERICA, INC.
