Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.

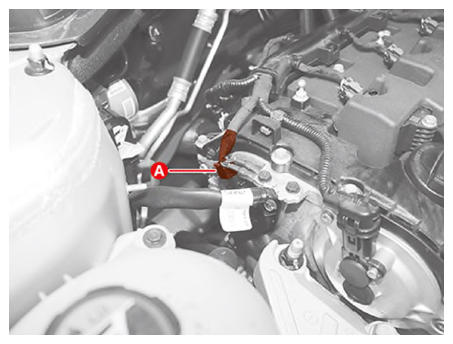

- Disconnect the Variable Force Solenoid (VFS) connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

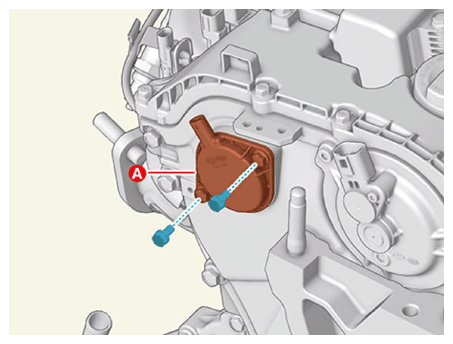

- Remove the VFS (A) after removing the mounting bolts.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
