Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative (-) terminal.

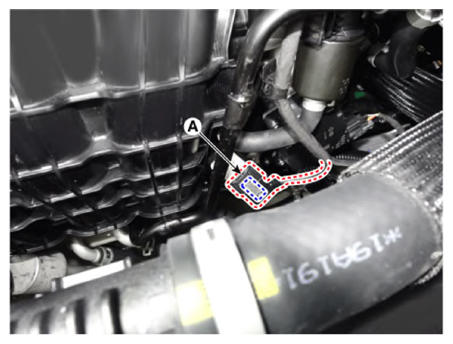

- Disconnect the Manifold Absolute Pressure Sensor (MAPS) & Intake Air Temperature Sensor (IATS) connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

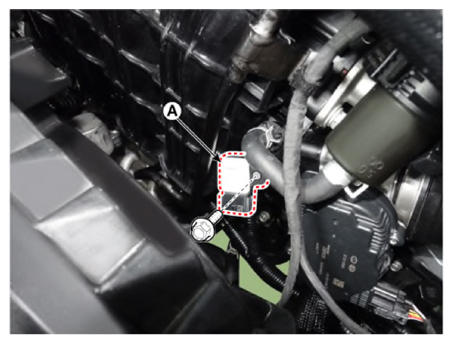

- Remove the MAPS & IATS (A) after removing the mounting bolt.
Tightening torque:
8.9 - 10.7 N.m (0.9 - 1.1 kgf.m, 6.5 - 7.9 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
