Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

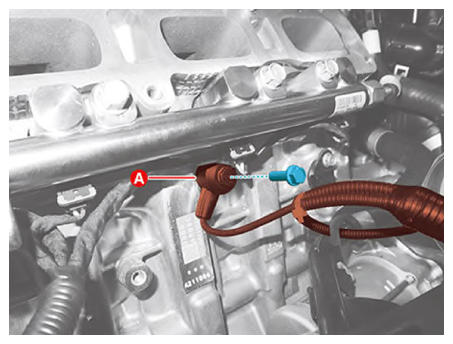

Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

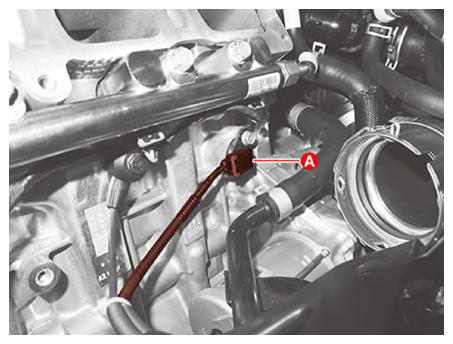

Disconnect the Oil Pressure & Oil Temperature Sensor (OPTS) connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

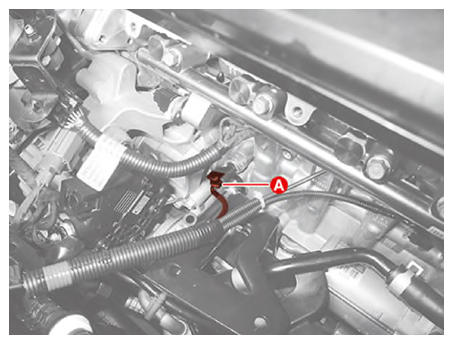

Remove the Knock Sensor (KS) after removing the mounting bolt (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)
