Rear Heated Oxygen Sensor
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative (-) terminal.
- Disconnect the HO2S connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

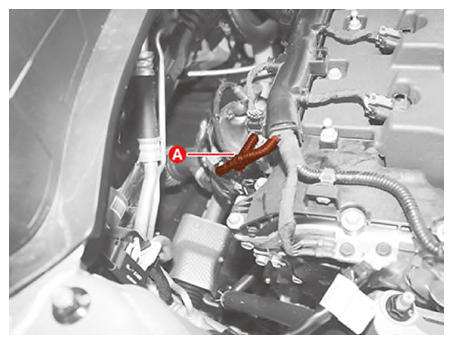

- Remove the rear HO2S (A) by using the SST (09392 - 1Y100 or 09392 - 2H100).
Tightening torque:
39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)
 Courtesy of KIA MOTORS AMERICA, INC.
|
