Engine Coolant Temperature Sensor (ECTS) - Water Pump

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

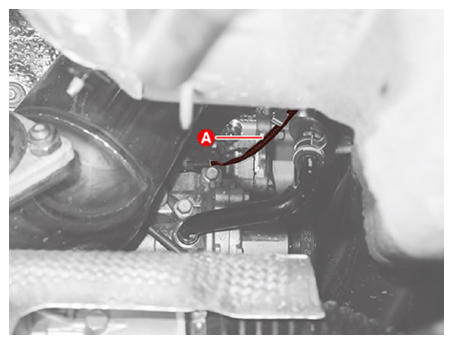

Disconnect the ECTS connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

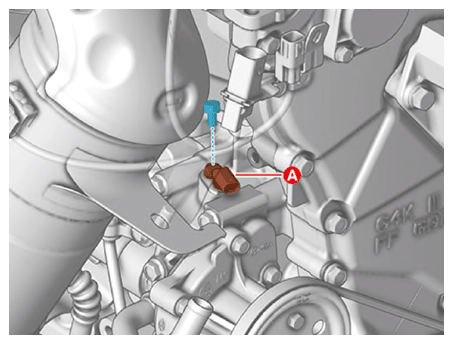

Remove the ECTS (A) after removing the mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
