Engine Coolant Temperature Sensor (ECTS) - ITM

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

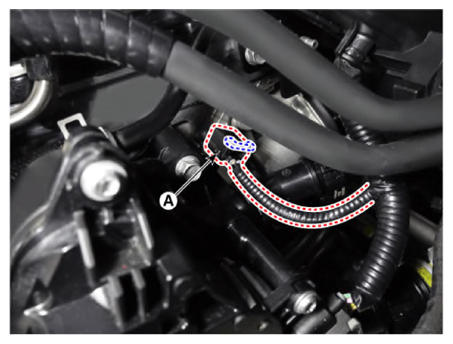

  2. Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).
    G13661088Courtesy of KIA MOTORS AMERICA, INC.

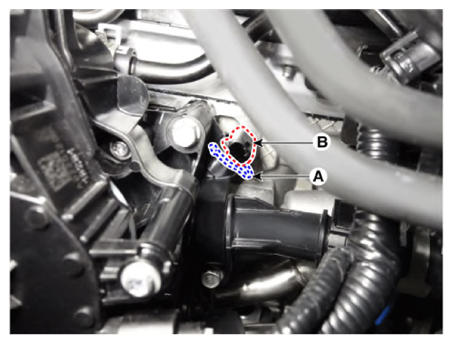

  3. Remove the ECTS (B) after removing the fixing clip (A).
    G13661089Courtesy of KIA MOTORS AMERICA, INC.
