Engine Coolant Temperature Sensor (ECTS) - Cylinder block

WARNING: This page is about a different variant/trim than selected.

Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

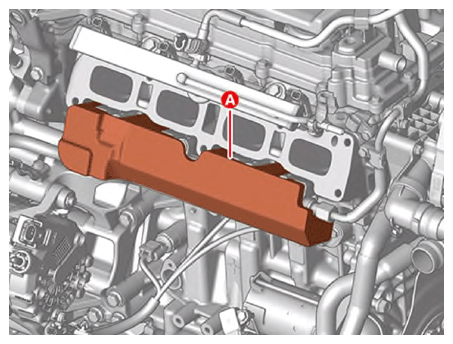

Remove the injector foam (A).

Courtesy of KIA MOTORS AMERICA, INC.

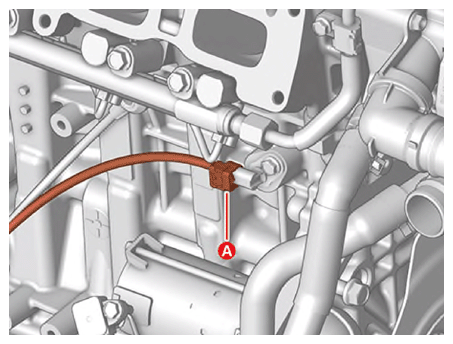

Disconnect the ECTS connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

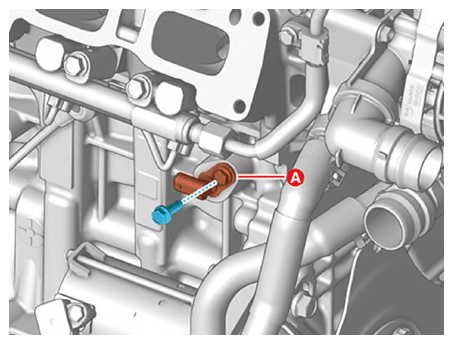

Remove the ECTS (A) after removing the mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
