Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:

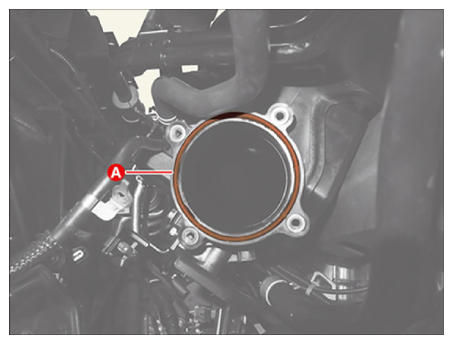

  • Check the seal ring (A) installation before installing the ETC module.
    G13661081Courtesy of KIA MOTORS AMERICA, INC.
  • Install the ETC with the specified torque.
  • If ETC is dropped, it may cause internal damage. Do not use it.
  1. Install in the reverse order of removal.

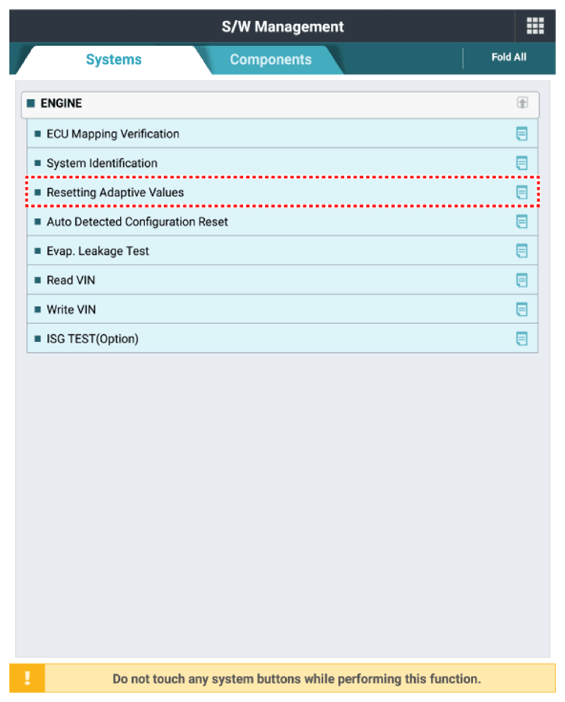

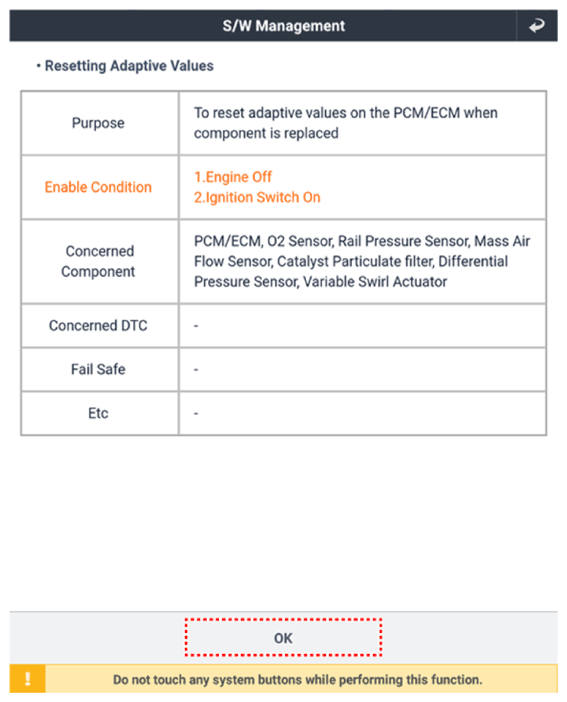

  2. Reset the ECM adaptive values after replacing the ETC.
    G13661082Courtesy of KIA MOTORS AMERICA, INC.
    G13661083Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the ETC learning procedure.

    (Refer to ETC (Electronic Throttle Control) System - "ADJUSTMENT ")
