Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative (-) terminal.

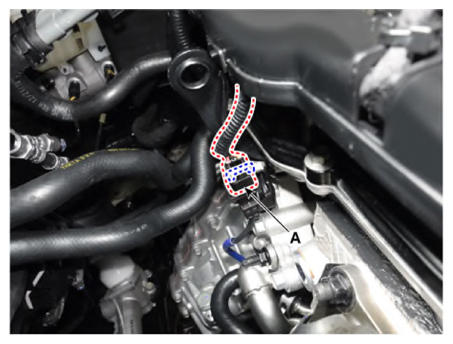

Disconnect the CKPS connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

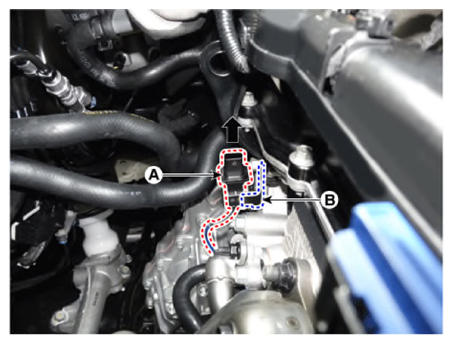

Remove the connector (A) from the bracket (B).

Courtesy of KIA MOTORS AMERICA, INC.

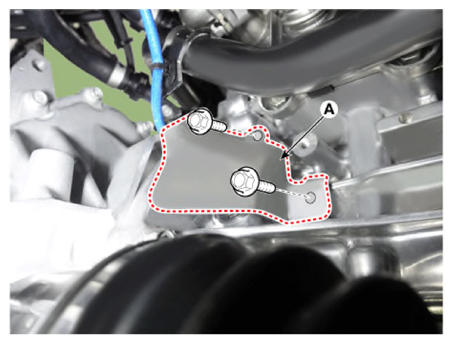

Remove the Crankshaft Position Sensor (CKPS) heat protector (A) after removing the mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

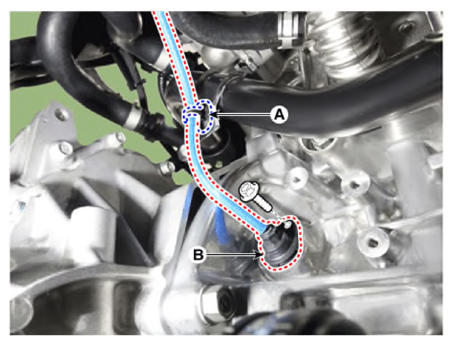

Remove the CKPS (A) by removing the bolt after removing the wiring fixing clip.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
