Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

Install the CMPS to the specified torque.
If CMPS is dropped, it may cause internal damage. Do not use it.

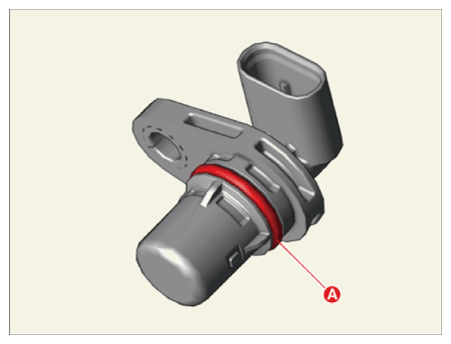

Install the CMPS after applying the engine oil to the O-ring (A).

G13661060

Courtesy of KIA MOTORS AMERICA, INC.

Be careful to damage the sensor, when it is installed.

Install in the reverse order of removal.
