Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative (-) terminal.

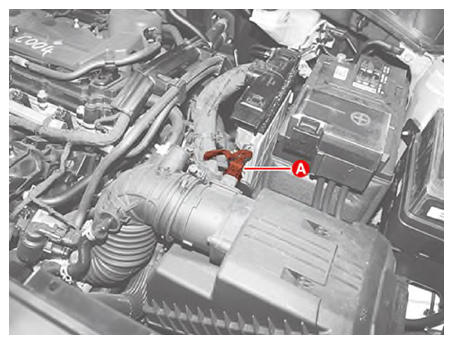

- Disconnect the Air Flow Sensor (AFS) connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

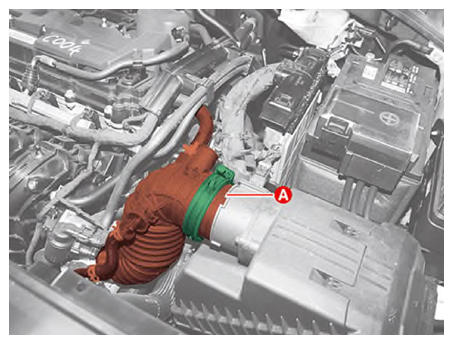

- Separate the intake hose (A) by releasing the clamp.
 Courtesy of KIA MOTORS AMERICA, INC.
|

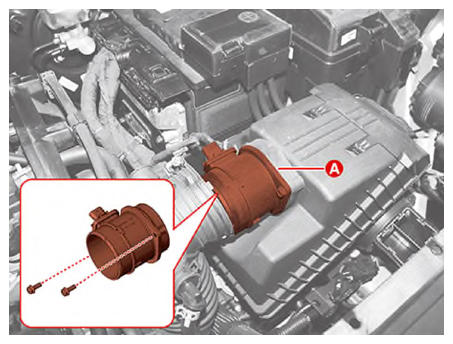

- Remove the AFS (A) after removing the mounting bolts.
Tightening torque:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)
 Courtesy of KIA MOTORS AMERICA, INC.
|
