Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the battery negative (-) terminal.

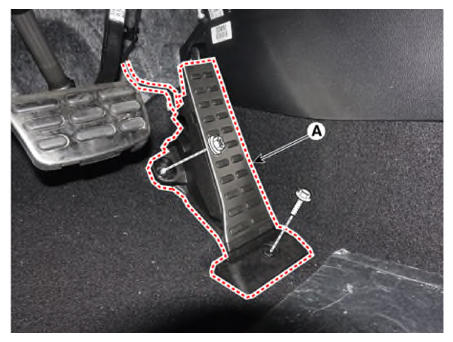

- Remove the accelerator pedal module (A) after opening the caps and removing the mounting bolts.
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft))
 Courtesy of KIA MOTORS AMERICA, INC.
|

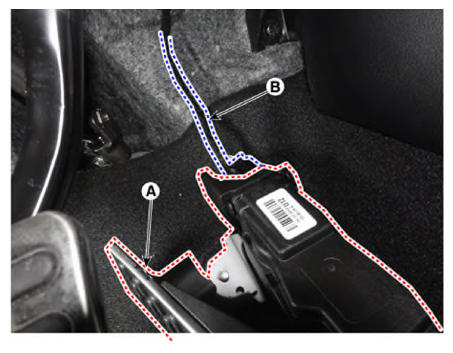

- Disconnect the accelerator pedal connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
