Tensioner bracket

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt tensioner.
  2. Remove the alternator.

    (Refer to Engine Electrical System - "ALTERNATOR ")

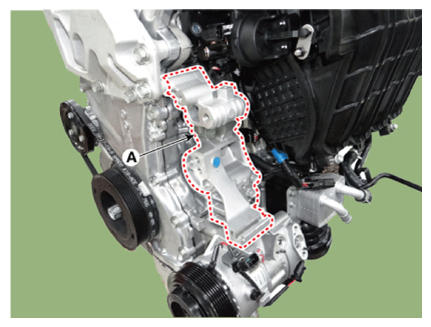

  3. Remove the tensioner bracket (A).

    Tightening torque:

    39.2 - 44.1 N.m (4.0 - 4.5 kgf.m, 28.9 - 32.5 lb.ft)

    G13660729Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
