Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Install the RPS with the specified torque.
- If RPS is dropped, it may cause internal damage. Do not use it.
- Install in the reverse order of removal.
- Check for leakage the fuel after installation.

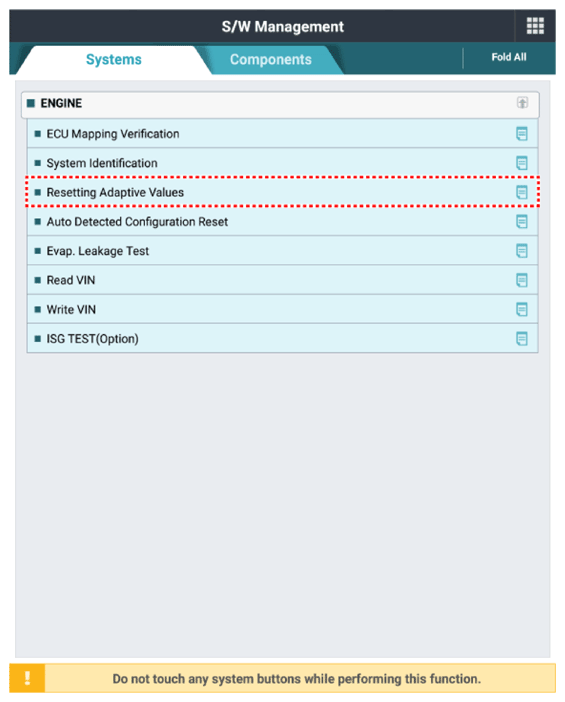

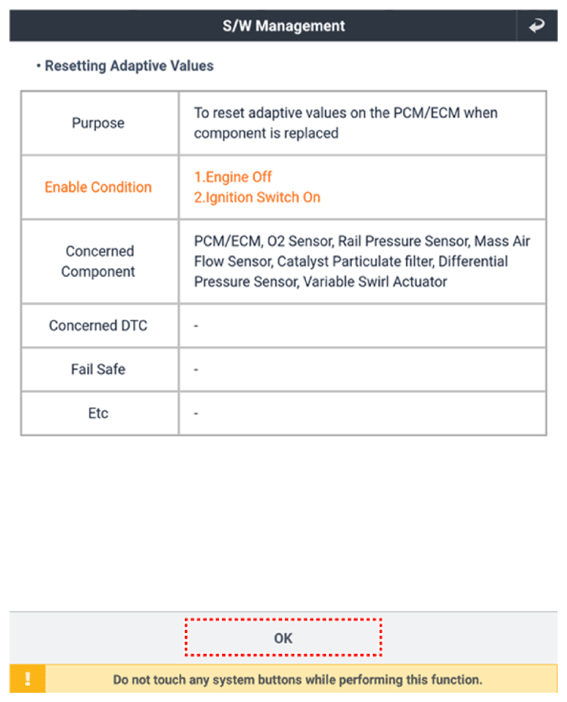

- Reset the ECM adaptive values after replacing the RPS.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
