Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Disconnect the battery negative (-) terminal.
  3. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  4. Remove the high pressure fuel pipe (A).

    (Refer to Fuel Delivery System - "FUEL LINE ")

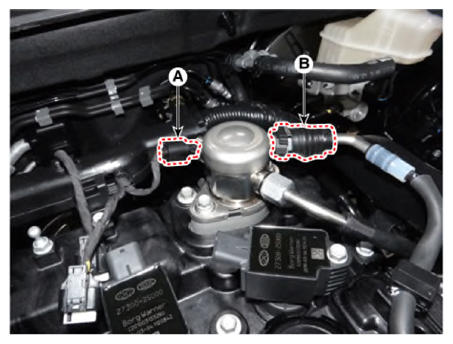

  5. Disconnect the fuel pressure control valve connector (A) and separate the fuel feed tube quick-connector (B).
    G13661242Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

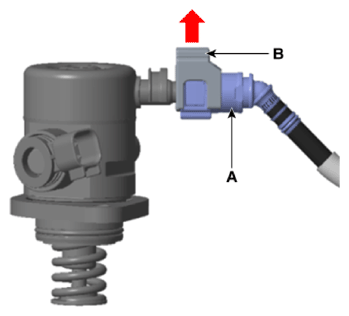

    • Pull the fuel injection tube quick-connector (A) cover (B) in the arrow direction.
      G13661243Courtesy of KIA MOTORS AMERICA, INC.

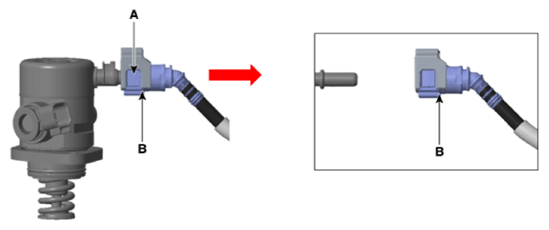

    • Remove the quick-connector (B) after pressing the quick-connector button (A) and pulling fuel injection tube in the arrow direction.
      G13661244Courtesy of KIA MOTORS AMERICA, INC.

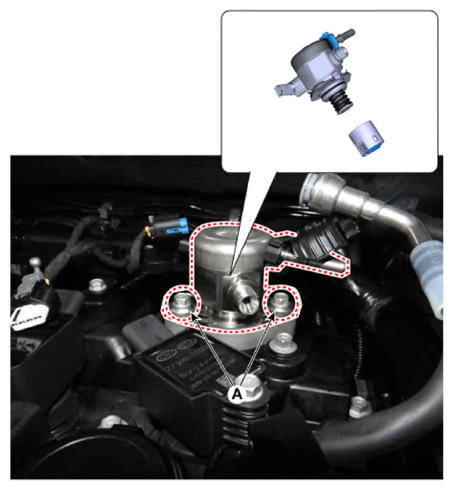

  6. Remove the high pressure fuel pump after removing the mounting bolts (A).

    Tightening torque:

    12.8 - 14.7 N.m (1.3 - 1.5 kgf.m, 9.4 - 10.8 lb.ft)

    G13661245Courtesy of KIA MOTORS AMERICA, INC.
