Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in the fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

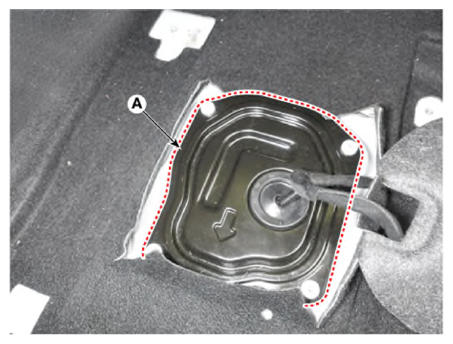

Remove the fuel pump service cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

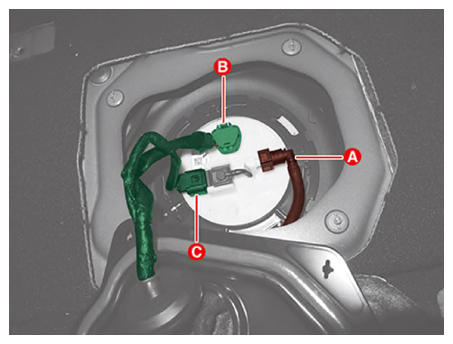

Disconnect the connectors (A, B, C) from fuel pump.
1. Fuel injection tube quick-connector
2. Fuel pump connector
3. Fuel tank pressure sensor connector
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle by using the lift.
Remove the center muffler assembly.
(Refer to Engine Mechanical System - "MUFFLER ")
Remove the propeller shaft assembly (A).[For 4WD]
(Refer to Driveshaft and Axle - "PROPELLER SHAFT ASSEMBLY ")

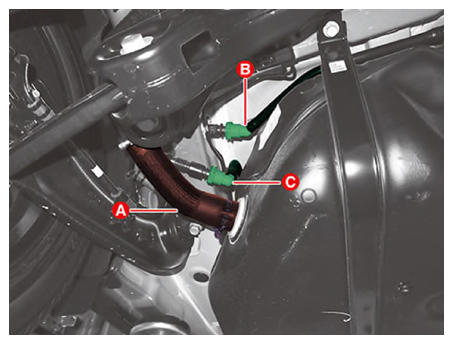

Remove the hose (A) and the quick-connectors (B, C) from the fuel tank.
Tightening torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft, 43.4 - 52.1 lb.in)
1. Fuel injection hose
2. Leveling hose
3. Vapor hose
Courtesy of KIA MOTORS AMERICA, INC.
Support the fuel tank on a jack.

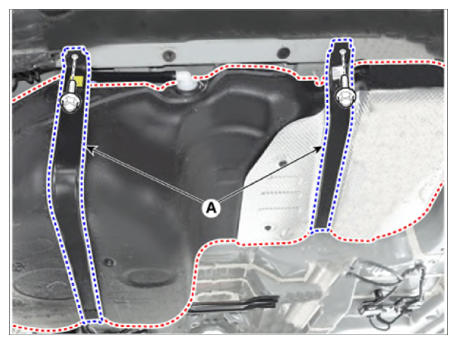

Remove the fuel tank band after removing fuel tank band mounting nuts (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
