Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump module.

    Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

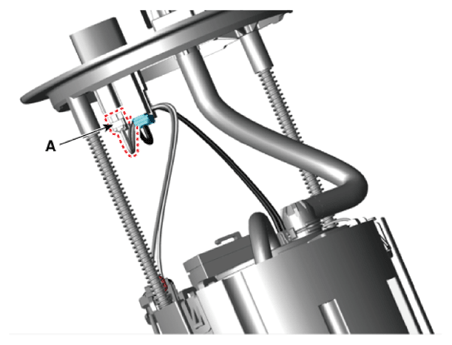

  2. Disconnect the fuel sender connector (A).
    G13661235Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the fuel sender assembly (A) after pushing the hooks in the direction of the arrows.
    G13661236Courtesy of KIA MOTORS AMERICA, INC.
