Fuel Sender
WARNING: This page is about a different variant/trim than selected.

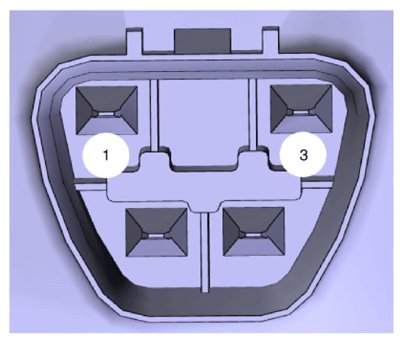

- Using an ohmmeter, measure the resistance between terminals 1 and 3 of sender connector (A) at each float level.
Pin No. Description 1 Fuel sender ground 3 Fuel sender signal (+) 4 Fuel pump (+) 5 Fuel pump (-) - Also check that the resistance changes smoothly when the float moves from "E" to "F".
Position Resistance (Ω) Capacity (l ) E 297 - 305 3.0 (0.79, 3.17, 2.63) 1/2 85.5 - 87.5 32.7 (8.63, 34.55, 28.77) F 14.0 - 16.0 65.0 (17.17, 68.69, 57.19)
