Fuel Pump
WARNING: This page is about a different variant/trim than selected.

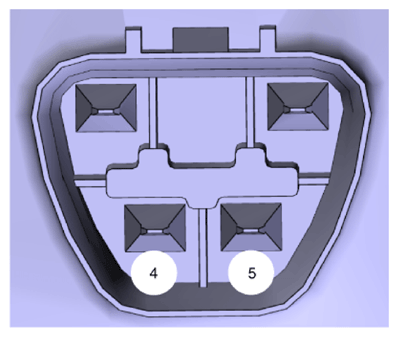

- Check motor operation by connecting power to terminal 4 and ground to terminal 5 of fuel pump connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Pin No. |
Description |
| 1 |
Fuel sender ground |
| 3 |
Fuel sender signal (+) |
| 4 |
Fuel pump (+) |
| 5 |
Fuel pump (-) |
