Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
    NOTE:
    • Be careful not to miss the O-ring (A) and spacer (B) when assembling the fuel pump.
      G13661231Courtesy of KIA MOTORS AMERICA, INC.

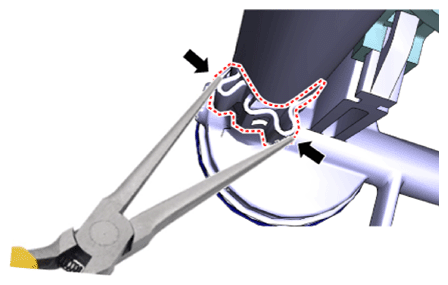

    • Install the clip certainly by using the tool.
      G13661232Courtesy of KIA MOTORS AMERICA, INC.
    • Be careful not to miss the O-ring (A) when assembling the plate.
    G13661233Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for leakage the fuel after installation.
