Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel pump module.

    (Refer to Fuel Delivery System - "FUEL PUMP MODULE ")

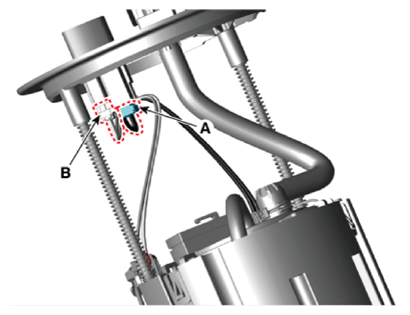

  2. Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
    G13661207Courtesy of KIA MOTORS AMERICA, INC.

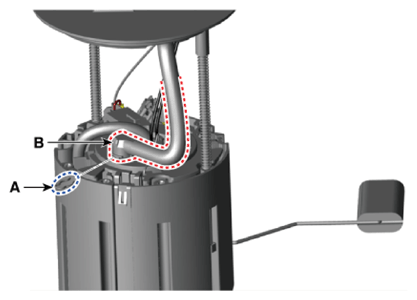

  3. Remove the fuel feed tube quick-connector (B) after removing the clip (A).
    G13661208Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the fuel sender assembly (A) after pushing the hooks in the direction of the arrows.
    G13661209Courtesy of KIA MOTORS AMERICA, INC.

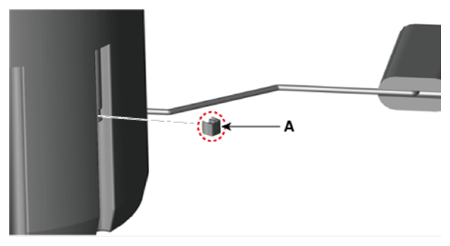

  5. Remove the stopper (A).
    G13661210Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the head assembly (A) and O-ring (B).
    G13661211Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the reserve cup (A) after pulling the hooks in the direction of the arrows.
    G13661212Courtesy of KIA MOTORS AMERICA, INC.

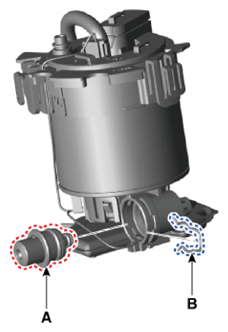

  8. Remove the fuel pressure regulator (A) after removing the fixing clip (B).
    G13661213Courtesy of KIA MOTORS AMERICA, INC.
