Low Pressure Fuel Line [Low Pressure Delivery Pipe <-> Fuel Tank]

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the battery negative (-) terminal.
Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

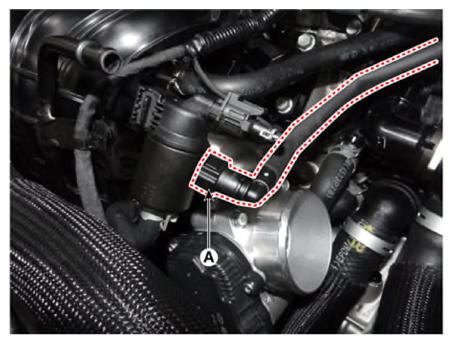

Separate the vapor quick-connector (A) connected to Purge Control Solanoid Valve (PCSV).

Courtesy of KIA MOTORS AMERICA, INC.

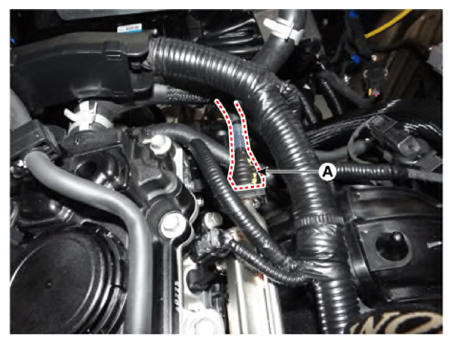

Separate the fuel injection line quick-connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Open the clamp cover (A) before disconnect the quick connector. (If the clip is applied)

Courtesy of KIA MOTORS AMERICA, INC.

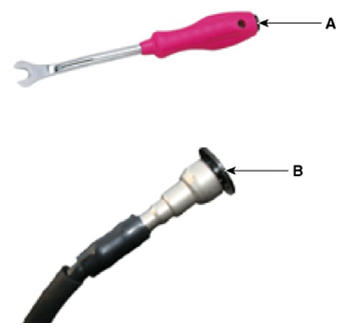

When using the clip removing tool (A), be careful not to damage the plastic clip (B).

Courtesy of KIA MOTORS AMERICA, INC.

If the clip is damaged, it can cause a fuel leak due to bad connection and could result in a fire.

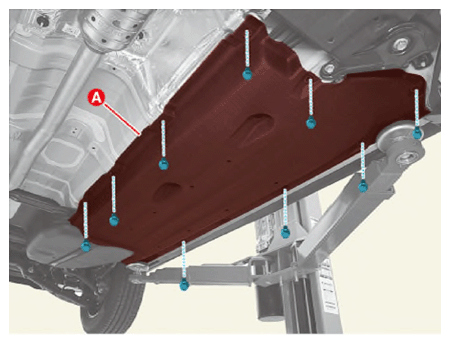

Remove the left under cover (A) after removing the bolts.

Courtesy of KIA MOTORS AMERICA, INC.

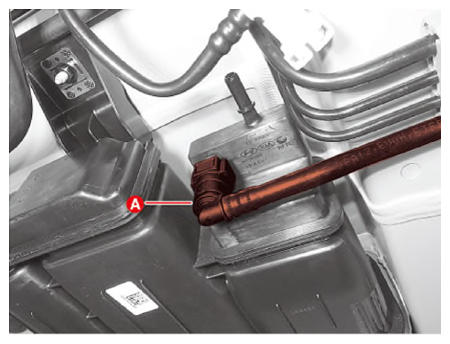

Remove the vapor tube quick-connector (A) from the canister.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")
Remove the fuel line from the vehicle after removing the mounting bracket.
