High Pressure Fuel Line [High Pressure Fuel Pump ↔ High Pressure Delivery Pipe]

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the battery negative (-) terminal.
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

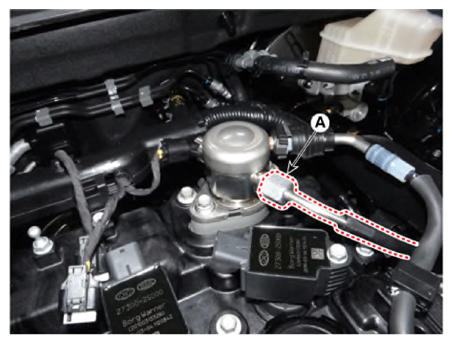

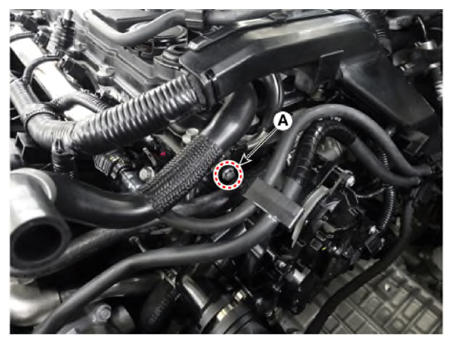

Remove the pipe flange nut (A) connected to high pressure fuel pump.
Tightening torque:

32.4 - 35.3 N.m (3.3 - 3.6 kgf.m, 23.9 - 26 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

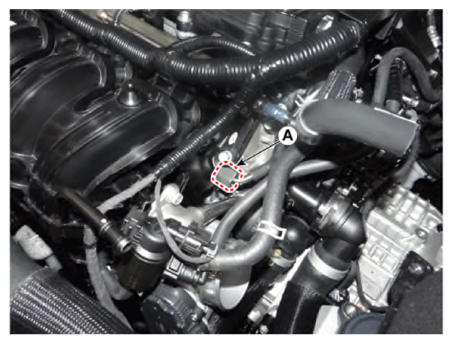

Remove the pipe flange nut (A) connected to high pressure delivery pipe.
Tightening torque:

32.4 - 35.3 N.m (3.3 - 3.6 kgf.m, 23.9 - 26 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

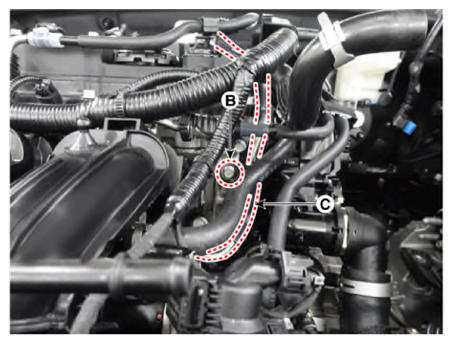

Remove the high pressure fuel pipe (C) after removing the mounting bolts (A, B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
