Low Pressure Delivery Pipe

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Disconnect the battery negative (-) terminal.

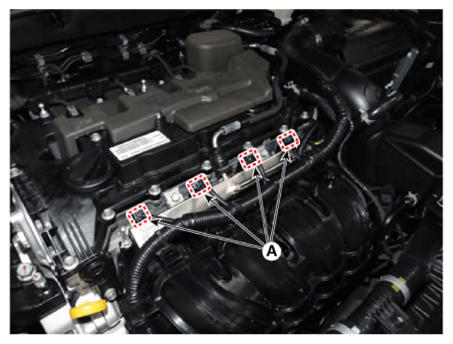

Disconnect the injector connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

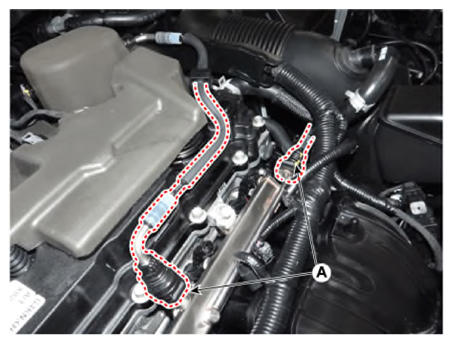

Disconnect the fuel injection quick-connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Open the clamp cover (A) before disconnecting the quick connector.

Courtesy of KIA MOTORS AMERICA, INC.

If the clip is damaged, it can cause a fuel leak due to bad connection and could result in a fire.

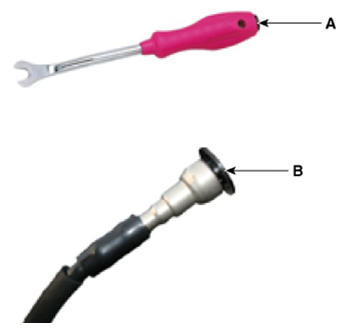

When using the clip removing tool (A), be careful not to damage the plastic clip (B).

Courtesy of KIA MOTORS AMERICA, INC.

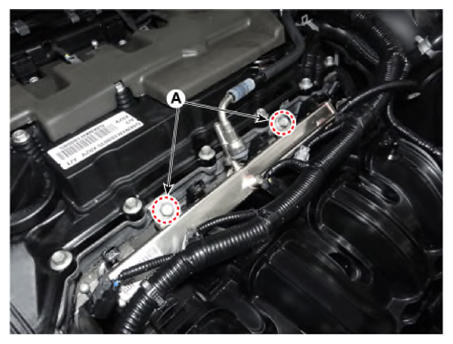

Remove the delivery pipe (A) after removing the mounting bolt.
Tightening torque:

18.7 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.8 - 17.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

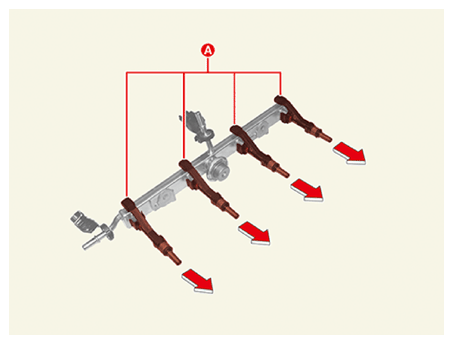

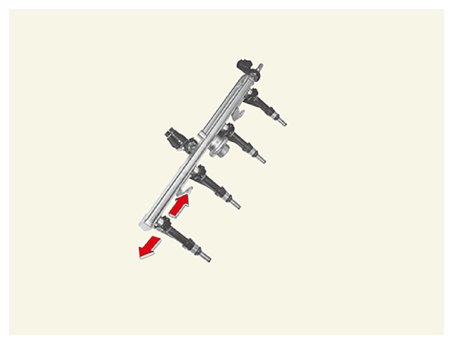

Remove the injector from delivery pipe (A) after releasing the fixing clip to the arrow direction.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
