Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install in the reverse order of removal.
    NOTE:

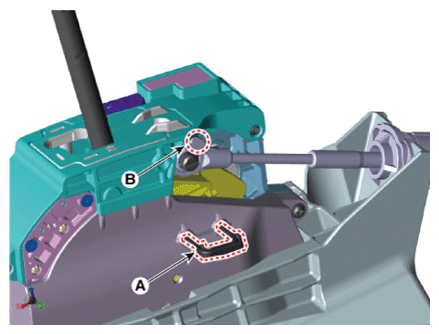

    • Before installing the shift cable, insert "N range fixing pin" (A) of shift lever after checking the shift lever and manual control lever are on "N" range.
    • Install the shift cable after checking the direction of projection (B) to prevent incorrect assembly.
      G13661329Courtesy of KIA MOTORS AMERICA, INC.

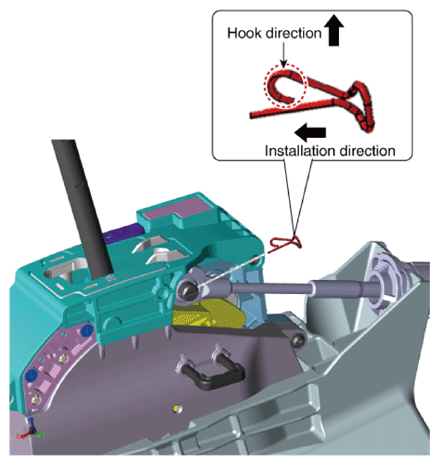

    • Mind the installation direction of snap pin and install the snap pin with the hook facing upward.
      G13661330Courtesy of KIA MOTORS AMERICA, INC.

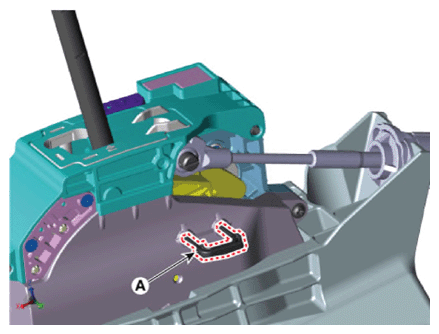

    • Make sure to get rid of "N range fixing pin" (A) after installing the shift lever assembly.
      G13661331Courtesy of KIA MOTORS AMERICA, INC.
  2. Operate the shift lever to check whether each position (P, R, N, D) works.
