TCM adaptive values learning

WARNING: This page is about a different variant/trim than selected.

TCM adaptive values learning: When shift shock occurs or parts related with the transaxle are replaced, TCM learning should be performed.
In the following case, TCM learning is required.
- Automatic transaxle assembly replacement
- TCM upgrade or replacement

TCM adaptive values learning procedure: Repeat the above procedure least three times as shown in the pattern of illustration below.

Static relearn (condition: ATF temperature 35 - 95°C [95 - 203°F])

Courtesy of KIA MOTORS AMERICA, INC.

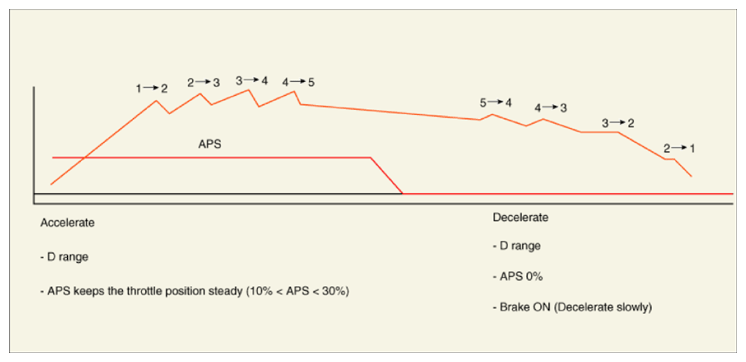

Driving relearn

Courtesy of KIA MOTORS AMERICA, INC.
