Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Shift the gear to "N".
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

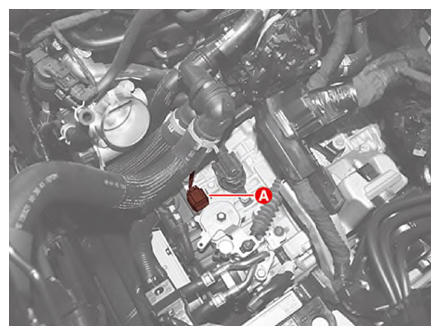

  3. Disconnect the position switch connector (A).
    G13661312Courtesy of KIA MOTORS AMERICA, INC.

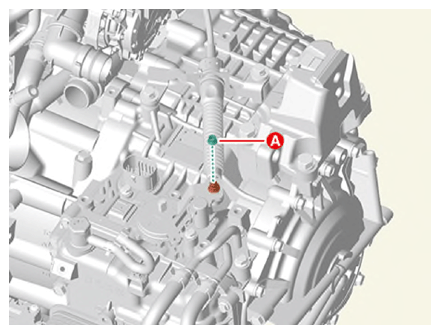

  4. Remove the shift cable after removing the nut (A).
    G13661313Courtesy of KIA MOTORS AMERICA, INC.

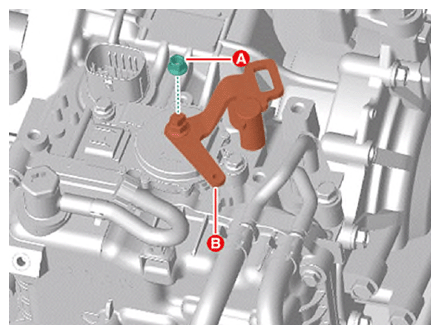

  5. Remove the manual control lever (B) and the washer after removing a nut (A).
    G13661314Courtesy of KIA MOTORS AMERICA, INC.

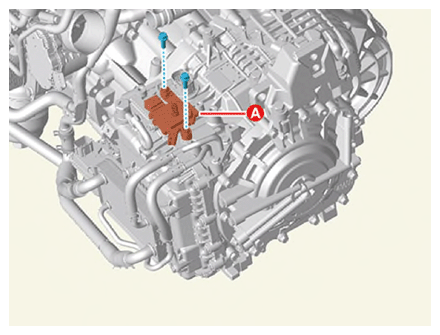

  6. Remove the position switch (A) after removing the bolts.
    G13661315Courtesy of KIA MOTORS AMERICA, INC.
