Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:

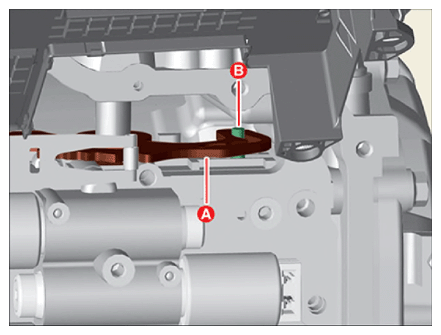

- When installing the valve body, make sure that the pin (B) of the manual valve is inserted into the detent lever (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- When installing the clamp, be careful not to damage the hose.

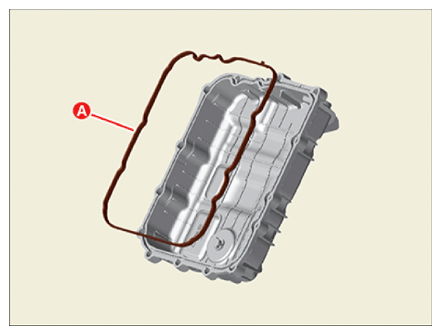

- The existing valve body cover gasket (A) must be replaced with a new one (do not reuse).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
- Refill the automatic transaxle with fluid.
(Refer to Hydraulic System - "FLUID
")
- Refill the engine coolant.
(Refer to Engine Mechanical System - "COOLANT
")
- Check for leakage of coolant or fluid from hose connection while the engine is starting.
