Description & Operation: Description: Notes
WARNING: This page is about a different variant/trim than selected.

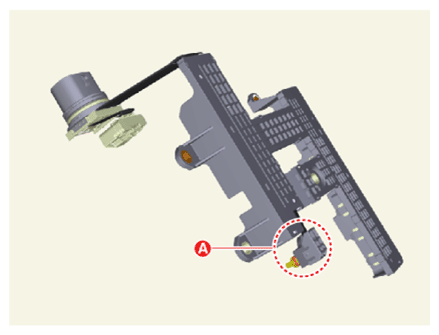

- The sensor used is a thermistor (NTC) (A) in which resistance changes with temperature variation.
- When the TCM supplies about 5 V of power to sensor, the sensor output value changes depending on ATF temperature.
- Oil temperature sensor is installed on the valve body and is integrated with E-module.
