Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

NOTE:

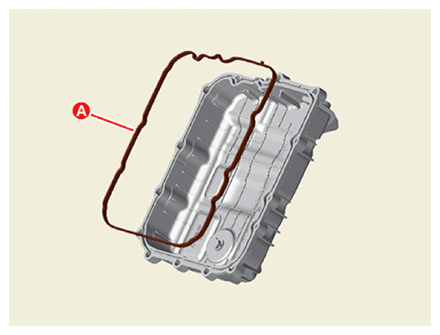

The existing valve body cover gasket (A) must be replaced with a new one (do not reuse).

G13661518

Courtesy of KIA MOTORS AMERICA, INC.

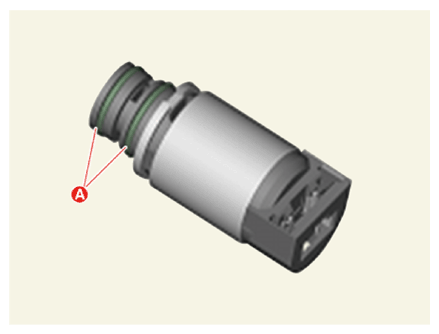

When installing, apply the ATF oil or petroleum jelly to the O-rings (A) to prevent damage.

G13661519

Courtesy of KIA MOTORS AMERICA, INC.

Perform the procedures below after installing.
1. Refill the automatic transaxle with fluid.
  (Refer to Hydraulic System - "FLUID ")

  NOTE: After ATF injection and level check, clean ATF outside the automatic transaxle.
  (Wipe off the residual ATF, especially between the automatic transaxle case and the valve body cover.)
2. Refill the engine coolant.
  (Refer to Engine Mechanical System - "COOLANT ")
3. Clear the diagnostic trouble codes (DTC) using the KDS. Disconnecting the battery negative terminal will not clear the DTCs. Clear DTCs using the KDS at all times.
4. After installing, check for leakage of coolant or fluid from hose connection during engine start.
